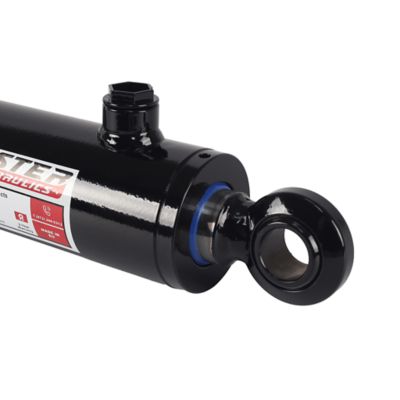

Magister Hydraulics 2.5 in. Bore x 20 in. Stroke Swivel Ball Hydraulic Cylinder

Shop all Magister Hydraulics
Magister Hydraulics 2.5 in. Bore x 20 in. Stroke Swivel Ball Hydraulic Cylinder

Item # 6111142

$283.99
Magister Hydraulics 2.5 in. Bore x 20 in. Stroke Swivel Ball Hydraulic Cylinder

Item # 6111142

$283.99

Engineered for maximum performance and durability, the heavy-duty Welded Swivel Ball Hydraulic Cylinder is designed to handle demanding jobs in agriculture, construction, and industrial equipment. The Magister Hydraulics Welded Double Acting Hydraulic Cylinder, with a 2.5-inch bore and 20-inch stroke, features swivel ball mounts on both ends for optimal flexibility and endurance, allowing angular movement and improved load alignment. Built to operate in the harshest environments, this ram offers a cost-effective and reliable alternative to OEM hydraulic components.2.5 in bore x 20 in stroke welded double-acting hydraulic cylinder with swivel ball on both ends with bearings. Made for heavy-duty hydraulic equipment. It can be used for a variety of compact construction equipment agricultural machinery. 3000 PSI max pressure. Made in Europe 2-year Warranty Same Day Free Shipping.

  • - Extreme load capacity: Welded steel mounts with bearings base end, 2.875" honed cold-drawn tubing, 1.5" chrome-plated rod (steel 1045). Equipped with swivel ball mounts on both base and rod ends for enhanced flexibility, wide angle and alignment under the load.
  • - Swivel Mount Mobility: Integrated swivel ball mounts allow for up to 19 horizontal and 10 vertical movement, ensuring optimal alignment under misaligned or dynamic load conditions. Ideal for applications with structural movement or where installation tolerances require angular flexibility.
  • - Wide Range Hydraulic Applications: Perfect for installations that require angular compensation commonly used in agriculture, recycling, trailers, loaders, compact machinery such as skid steers and mini-loaders, and utility vehicles.
  • - Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications.
  • - High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
  • - Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
  • - Smooth Operation: Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
  • - Easy Maintenance: Simple to service and maintain, reducing downtime and ensuring continuous operation.
  • - 2-year warranty
  • - Same Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays). Free Ground Continental US Shipping.
