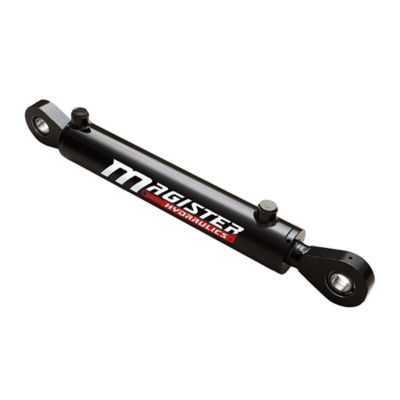

Magister Hydraulics 2 in. Bore x 6 in. Stroke Swivel Eye Hydraulic Cylinder
Item # 601614799
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 601614799
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
Engineered for maximum performance and durability, the heavy-duty Welded Swivel Eye Hydraulic Cylinder is designed to handle demanding jobs in agriculture, construction, and industrial equipment. The Magister Hydraulics Welded Double Acting Hydraulic Cylinder, with a 2-inch bore and 6-inch stroke, features swivel eye mounts on both ends, allowing angular movement and improved load alignment. Built to operate in the harshest environments, this ram offers a cost-effective and reliable alternative to OEM hydraulic components.
Looking for more information on hydraulics? Check out our guide on hydraulics in the product documents section.
- - Extreme load capacity: Welded steel mounts with bearings base end, 2.38" honed cold-drawn tubing, 1.25" chrome-plated rod (steel 1045). Equipped with swivel eye mounts on both base and rod ends for enhanced flexibility and alignment under load.
- - High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life.
- - Precision Engineering: Designed with tight tolerances and advanced sealing technology to minimize leakage and maintain optimal performance.
- 2-year warranty
- Same Day Free Shipping
- Made in Europe
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 22 in. |
| Hydraulic Cylinder Type | Welded Double Acting |
| Maximum Operating Pressure | 3500 PSI |
| Maximum Weight Capacity | 9400 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | 6 SAE |
| Primary Material | Steel |
| Product Height | 5 in. |
| Product Length | 22 in. |
| Product Weight | 15 lb. |
| Product Width | 5 in. |
| Retracted Length | 16 in. |
| Rod Diameter | 1.25 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 6 in. |
| Warranty | 2 Years |
| Manufacturer Part Number | WSE 2x6 |
