Lenz Hydraulic Filter with Housing Assembly

SKU # 182260999
Product price

Save Up To
See Price in Store
No ratings found

Financing Available! Click here for more details...


Delivery Options:

Item Information

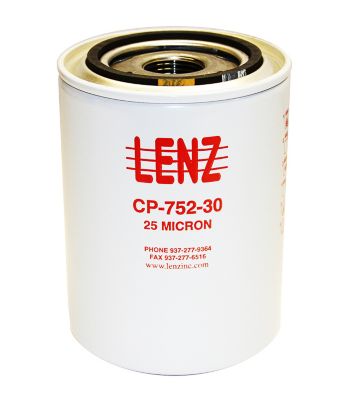

Lenz Hydraulic Filter with Housing Assembly includes filter element and housing ready for hydraulic hose connections.

  • 25 Micron
  • Max. 20 GPM
  • Max. 200 PSI
  • 3/4 in. NPTF ports

Specification Description
Product Height: 10 in.
Product Weight: 2 lb.
Product Type: Hydraulic Filters
Product Width: 4 in.
Brand: Lenz
Maximum Flow: 20 GPM
Inlet Ports: 3/4 in. NPTF
Pressure Rating: 200 PSI
Product Length: 4 in.
Noun: Hydraulic Cylinder Accessory
Flow Rating: 20 GPM
Outlet Ports: 3/4 in. NPTF
Manufacturer Part Number 221060

Does this assembly have a bypass circuit, and if so, what pressure would the bypass open? Thanks

Asked by: Filterburst
The filter has a 15 PSID bypass installed in the filter head. This will open when the pressure drop exceeds 15 PSI and allow partial flow down stream. It will close when the pressure drops below the 15 PSID setting.
Answered by: AmandaW
Date published: 2018-05-01
