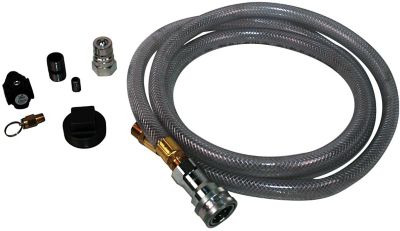

JohnDow Industries Air Evacuation Kit for JDI-LP4

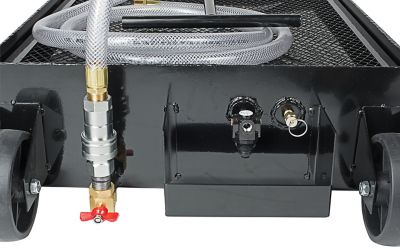

This optional JohnDow Industries Air Evacuation Kit for JDI-LP4 converts the JDI-LP4 into a self-evacuating drain. Using regular shop air, the air evacuation kit helps oil easily be transferred from the drain to the storage tank. The air evacuation kit includes a 3/4-inch male quick disconnect coupler and a 3/4-inch female quick disconnect coupler for your convenience, and a safety relief valve to help you stay safe just in case the optional air evacuation kit fails. A 1 year warranty comes included.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Air evacuation kit is compatible with the JDI-LP4 17-Gallon Low-Profile Oil Drain
- Optional air evacuation kit has a 7 psi fixed air regulator that produces efficient power
- Safety relief valve adds protection to the air evacuation kit
- 10 ft. evacuation hose
- 2 in. drain plug helps secure liquid
- Includes a 3/4 in. male quick disconnect coupler and a 3/4 in. female quick disconnect coupler
- 1 year warranty
| Brand | JohnDow Industries |
|---|---|
| Country of Origin | Made in USA |
| Compatible Fluids | Waste OIl, Oils |
| Discharge Connection | Female |
| Discharge Diameter | 0.75 in. |
| Features | 7 psi fixed air regulator Safety relief valve 10 evacuation hose 3/4 male quick disconnect coupler 3/4 female quick disconnect coupler 2 drain plug |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 0.375 in. |
| Maximum Flow Rate | N/A |
| Power Type | Air operated |
| Primary Material | Steel |
| Product Height | 12 in. |
| Product Length | 12 in. |
| Product Weight | 3 lb. |
| Product Width | 12 in. |
| Motor Type | NONE |
| Warranty | 1 Year |
| Manufacturer Part Number | JDI-EK |
