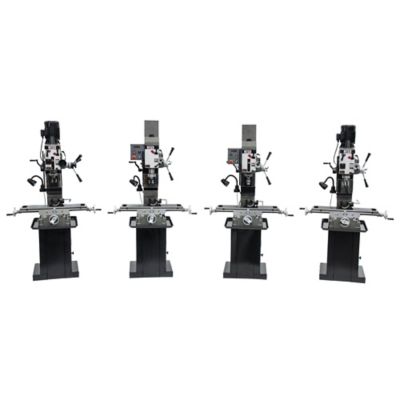

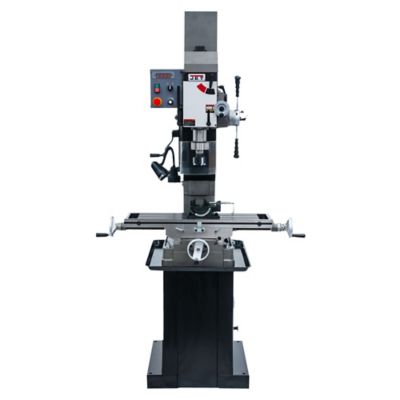

JET Variable Speed Square Column Geared Head Mill/Drill
$9599.99
Engineered to maximize production, the JET Variable Speed Square Column Geared Head Mill/Drill features power downfeed capability. Delivering the rigidity needed to perform a variety of precision drilling applications, this geared head mill/drill is great in high intensity environments. Made from tough construction, the geared head mill/drill can take plenty of wear and tear. Enjoy top-notch results with this geared head mill/drill!2 Year Warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Heavy-duty design of geared head mill/drill allows for variety of precision-drilling applications
- Full power cutting tools offered through geared head
- Square column with dovetail ways
- CSA/CUS: Following strict guidelines and electrical requirements, this JET Mill Drill is CSA/CUS certified
- Geared head mill/drill features spindle guard
- Work Lamp included with geared head mill/drill
- Calibrated fine down feed built in
- Geared head mill/drill offers easy to read internal depth gauge
- Head tilts left/right 90 degrees
- Rapid spindle speed changes through quick-select gear shift levers
- Provides forward/reverse switch
- Milling table allows for movement
- Power downfeed standard
- R8 spindle allows use of all mill tooling
- Mill drill stand (p/n 350045) shown in some images, is optional
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Amperage | 11A |
| Blade Change Type | None |
| Cord Length | 6 ft. |
| Cut Through | Mild Steel, Metal, Steel |
| Decibel Rating | 70 dB |
| Features | Variable Speed |
| Horsepower | 1.5 HP |
| Housing Material | N/A |
| Maximum Blade Length | 0 in. |
| Maximum Blade Width | 0 in. |
| Maximum Cutting Width | 0 in. |
| Maximum Speed | 2,500rpm |
| Minimum Blade Length | 0 in. |
| Minimum Blade Width | 0 in. |
| Minimum Speed | 50rpm |
| Number of Speeds | Variable |
| Portable or Stationary | Stationary |
| Product Height | 42-1/2 in. |
| Product Length | 28 in. |
| Product Weight | 628 lb. |
| Product Width | 39-1/4 in. |
| Rectangle Length Capacity | 0 in. |
| Rectangle Width Capacity | 0 in. |
| Round Capacity | 0 in. |
| Variable Speed | Variable Speed |
| Voltage | 115V |
| Warranty | 2 Year |
| Manufacturer Part Number | 351050 |
