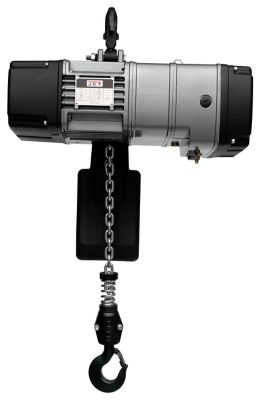

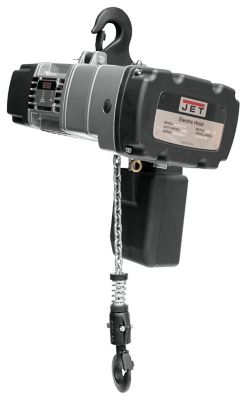

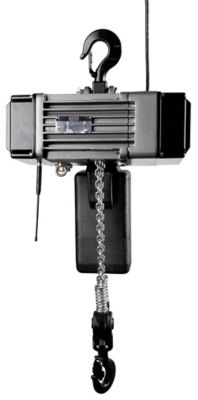

JET 1/4 Ton 20 ft. Lift Trademaster Electric Chain Hoist, 1 Phase
Item # 1650727
Neighbor’s Club Members earn points with purchases.
Item # 1650727
Neighbor’s Club Members earn points with purchases.
This JET 1/4 Ton 20 ft. Lift Trademaster Electric Chain Hoist combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. with its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. with the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster Series comes in 1/8 ton to 2 ton capacities and standard lifts of 10 and 20 ft. (custom lifts up to 100 ft. are available). Low noise at less than 75 dBA.2 year
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

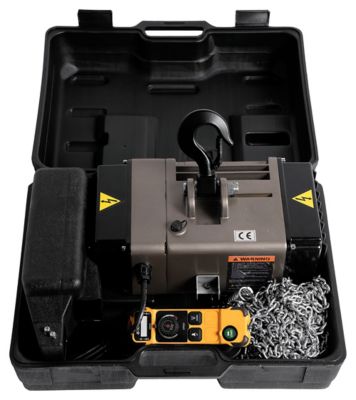

- 1/8 to 1/2 ton models come in plastic carry case for exceptional mobility
- 30 / 7.5 Time ratings
- Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4 FPM with speed dial and max of 41 FPM in high speed
- DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
- Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting
- Low noise at less than 75 dBA
- Overload protection using slip clutch system to protect hoist from loads over rated capacities
- Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10A
- TAA Approved
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Amperage | 10A |
| Features | Brushless |
| Full Load Lifting Speed | 41 FPM |
| Horsepower | 0.8 HP |
| Lift Assist Ratio | 0 |
| Lift Height | 20 ft. |
| Maximum Pull Length | 20 ft. |
| Maximum Weight Capacity | 500 lb. |
| Phase | Single |
| Primary Material | Steel |
| Product Height | 16.500 in. |
| Product Length | 19.300 in. |
| Product Weight | 47 lb. |
| Product Width | 8.700 in. |
| Voltage | 120V |
| Warranty | 2 Year |
| Manufacturer Part Number | 104013 |
