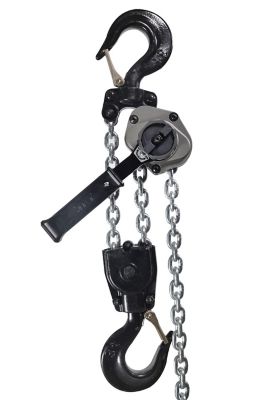

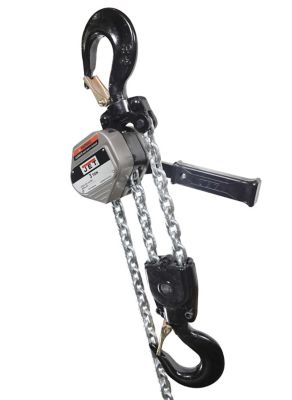

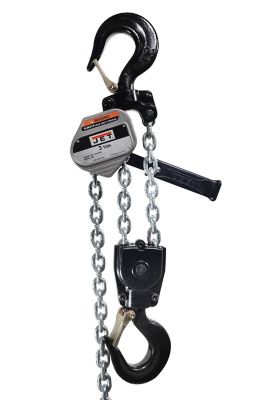

JET 3-Ton JLA Series Lightweight Aluminum Lever Hoist
Raise the bar on lightweight durability with our JET JLA Series 3-Ton 10 ft. Lightweight Aluminum Lever Hoist. Available in 0.75-ton, 1.5-ton and 3-ton models, this lightweight lever hoist delivers industry-leading size, weight and durability. Safety is also at the forefront, backed by an auto-engage clutch that allows for easy load chain adjustment while protecting against accidental freewheeling under load. Perfect for your normal, everyday applications, but the JLA series lever hoist also expands your capabilities with its compact body small enough to fit in your lunchbox, allowing you to get into tight areas where larger body hoists could not. All of this, plus a JET Assurance Lifetime Guarantee.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Compact and lighter than any lever hoist on the market
- Shortest handle on the market to get into tight areas
- Fused brake reduces maintenance and carries a lifetime warranty
- Weston-style double pawl system for added safety

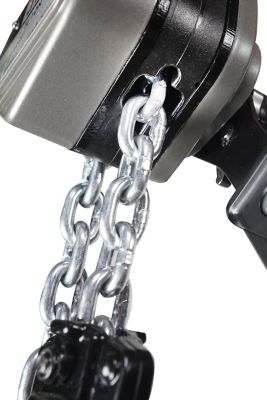

- Grade 100 load chain is a smaller, more compact link with improved working load limits and is zinc-plated for maximum corrosion protection
- Cast-steel safety latches will not bend out of shape like stamped steel latches
- Anodized surfaces for unmatched corrosion protection
- Lever hoist complies with ANSI / ASME B30.21 and HAST-3 standards
- Shipyard hooks available on 1.5-ton and 3-ton models
- 17.01 in headroom
- Hand crank lifting mechanism with a hook mount
- Maximum weight capacity: 6,000 lb.
- Aluminum construction ensures durability
- Lightweight lever hoist is backed by a lifetime warranty
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Chain Length | 10 ft. |
| Chain Pull To Lift Rated Load | 67 lb. |
| Chain Width | 7.1 mm |
| Features | Lightweight, Fused brake, Weston-style dual pawl system, corrosion resistant, ANSI / ASME B30.21 and HAST-3 Compliant |
| Hoist Mount Type | Hook mount |
| Lift Assist Ratio | 2 days, 1:01:00 |
| Lift Height | 10 ft. |
| Lift Mechanism | Hand crank |
| Maximum Pull Length | 10 ft. |
| Maximum Weight Capacity | 6,000 lb. |
| Power Type | Manual |
| Primary Material | Aluminum |
| Product Height | 5.83 in. |
| Product Length | 14.09 in. |
| Product Weight | 21.43 lb. |
| Product Width | 7.52 in. |
| Warranty | Lifetime |
| Manufacturer Part Number | JT9-375510 |
