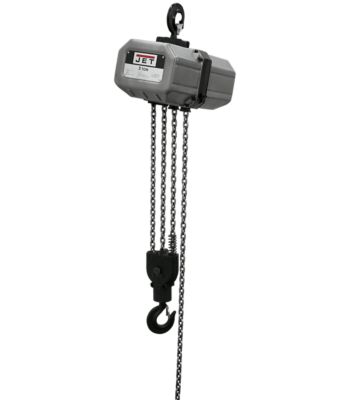

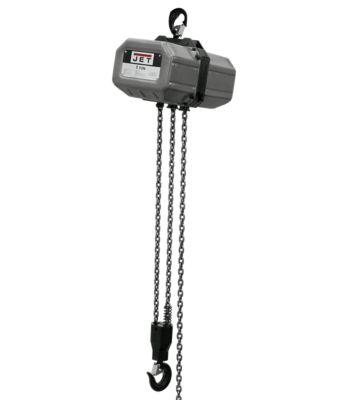

JET 3 Ton 15 ft. Lift SSC Series Electric Hoist, 115/230V, Pre-Wired 230 V
Item # 1893925
Item # 1893925
The JET SSC Series 3-Ton 15 ft. Lift Electric Hoist combines safety and durability to operate in commercial and industrial applications. The durable electric hoists incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. The electric hoists are available in single or 3-phase configurations to suit your electrical needs. The upper and lower limiting switches help to increase safety, preventing the load chain from over traveling. With a sealed oil bath incorporated into the gear train, this hoist is maintenance-free.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 24 volt push button controller with cable strain relief system for durability and reliability
- Electric hoist has all steel construction for durability
- NEMA 4X compliant push button control pendants
- Durable powder coat finish for long-lasting use
- Grade 80 black oxide coated load chain for durability
- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
- Electric hoist has thermal overload protection for safety
- Available in 1/2 ton to 5 ton capacities with standard lifts of 10, 15 and 20 feet (custom lifts available)
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Amperage | 16A |
| Chain Length | 15 ft. |
| Chain Width | 24mm |
| Features | Black oxide coated load chain |
| Full Load Lifting Speed | 6.6FPM |
| Full Load Lowering Speed | 6.6FPM |
| Hoist Mount Type | Hook mount |
| Number Of Speeds | 1 |
| Horsepower | 1.75HP |
| Lift Assist Ratio | 0 |
| Lift Height | 15 ft. |
| Lift Mechanism | Other |
| Maximum Pull Length | 15 ft. |
| Maximum Weight Capacity | 6,600 lb. |
| Phase | Single |
| Primary Material | Steel |
| Product Height | 17.6 in. |
| Product Length | 22.5 in. |
| Product Weight | 214.0 lb. |
| Product Width | 21.8 in. |
| Voltage | 115V/230V |
| Warranty | 2 Year |
| Manufacturer Part Number | 311500 |
