Hose Box Inc. Metric Light Din - JIC - NPT
$274.99

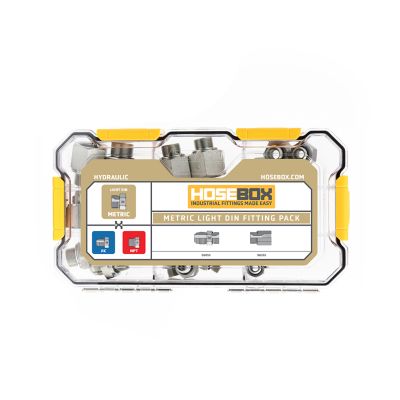

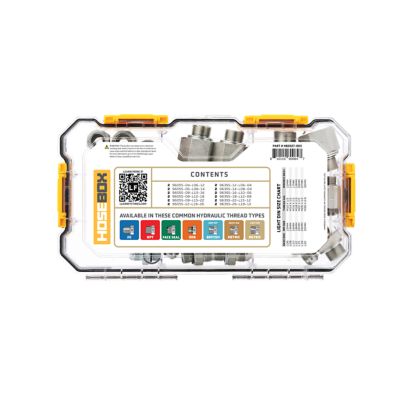

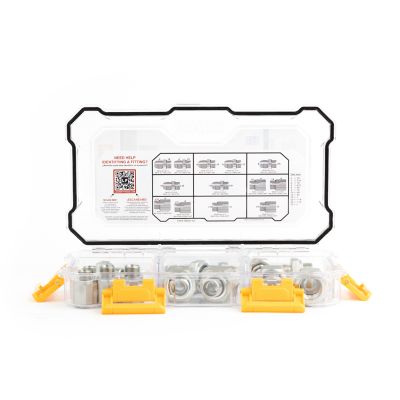

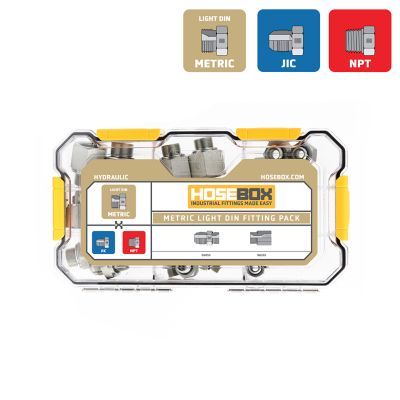

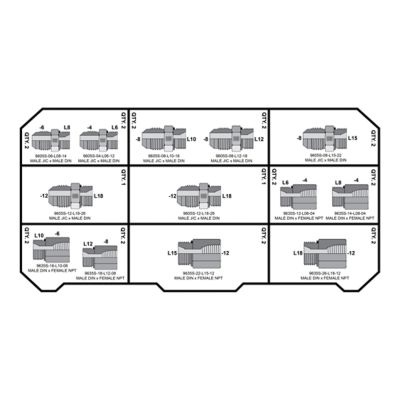

The FITTING PACK for Light DIN to JIC (37 deg. Flare) and Light DIN to NPT (Pipe) adapters comes housed in an extreme-duty waterproof plastic case. It features 24 carefully selected, high-quality adapters covering an extensive range of repair solutions in sizes -4 (1/4in.), to -16 (1in.).
- Extreme Duty waterproof compartment case, perfect for protecting your investment.
- Fitting Packs are available targeted at NPT (Pipe Thread), ORFS (O-Ring Face Seal), JIC (37 deg. Flare), ORB (O-Ring Boss), Heavy DIN (Metric), Light DIN (Metric), BSPP (British Standard Parallel Pipe).
- QR Code to Learnfittings.com Resource Center
| Brand | Hose Box Inc. |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | John Deere |
| Compatibility | Universal |
| End 1 Diameter | 1/8" |
| End 2 Diameter | 1 - 1/4" |
| Features | Fitting Packs feature a wide variety of hydraulic seals and adapter fittings in sizes ranging from -4 (1/4") to -16 (1"). |
| Hose Type | Standard |
| Maximum Operating Pressure | 5000 PSI |
| Maximum Temperature | 251deg. F |
| Minimum Temperature | -40 deg. F |
| Model Compatibility | Universal |
| Primary Material | Steel |
| Product Height | 13in. |
| Product Length | 13in. |
| Product Weight | 8lb. |
| Product Width | 2in. |
| Manufacturer Part Number | HB2027-003 |
