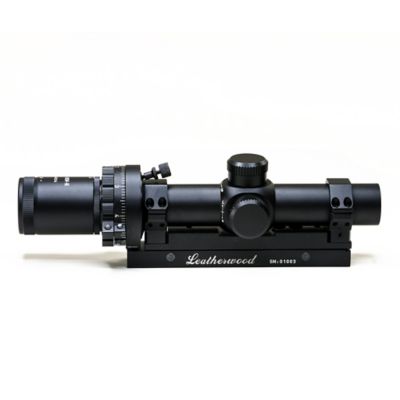

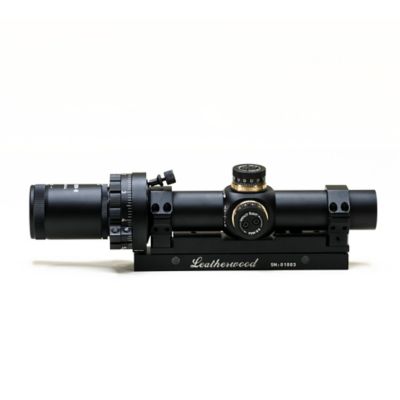

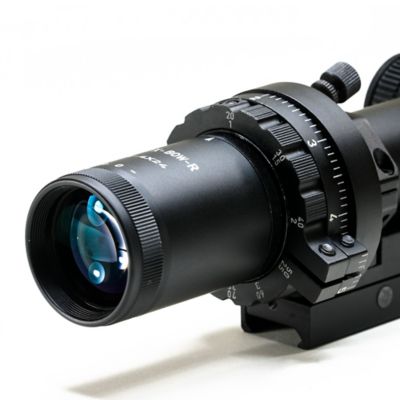

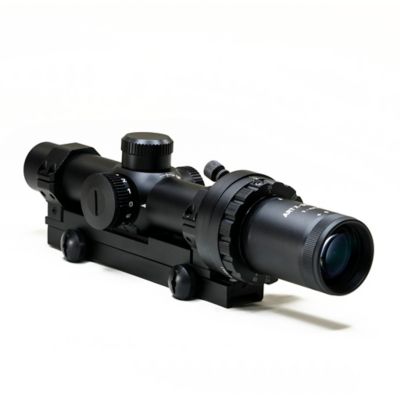

Hi-Lux Optics Automatic Ranging Trajectory X-BOW 1-4x24 Crossbow Scope, Duplex Dot, Red, ART-X-BOW-R

SKU: 154304899
Hi-Lux Optics Automatic Ranging Trajectory X-BOW 1-4x24 Crossbow Scope, Duplex Dot, Red, ART-X-BOW-R
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found


Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Leatherwood ART X-BOW is a 1X to 4X variable power scope that automatically corrects your line of sight from 20 yards to 80 yards. This is accomplished through the use of a unique circular cam that actually raises and lowers the rear of the scope. The effect of this, when aimed at a target, is to correspondingly lower and raise the line of flight of the bolt, and thereby adjust your aim to eliminate the effect of bolt drop due to gravity. The Leatherwood ART X-BOW does not rely on fragile internal ranging devices, complicated and undependable battery-based electronics, or changes to the elevation and windage adjustments. It is actually a mechanical computer that calculates the trajectory correction based on the target being framed in the reticle. By using one trajectory cam that is incrementally adjustable for your bow weight and bolt type, the ART X-BOW is the ONLY scope that is able to mechanically compensate for the curved trajectory of a crossbow.

  • Automatic Ranging for Bolts from 20 - 80 yards
  • Compatible with Bolt Speeds Up to 450 FPS
  • Revolutionary Single Pin System
  • Optical Range Finding by Framing
DiamondTuff Lifetime Warranty

Specification Description
Country of Origin: Imported
Housing Material: Aluminum
Finish: Anodized Finish
Special Feature(s): Automatic Ranging Trajectory for bolts between 20-80 yards; Compatible with Speeds up to 450;
Tube Diameter: 30 mm
Power Type: Battery
Scope Diameter: 30 mm
Scope Tube (L x W): 10.2210,.2,210.2,210.2 in.x2 in.
Eye Relief: 3 in.
Product Length: 10 in.
Battery Size: 2032 CR
Objective Lens Diameter: 24
Waterproof: Yes
Pattern: Matte Black Anodized Finish
Product Weight: 2 lb.
Battery Life: 200 hr.
Warranty: DiamondTuff Lifetime Guarantee
Battery Type: Lithium
Product Height: 2 in.
Brand: Hi-Lux Optics
Product Width: 2 in.
Number of Batteries Required: 1
Magnification: 141,41,41-4X
Eye Piece Type: Fast Focus Eyepiece
Field of View: 952610095,26,10095,26,10095 - 26 ft. 100 yd.
Part Number: ART-X-BOW-R
Manufacturer Part Number ART-X-BOW-R
