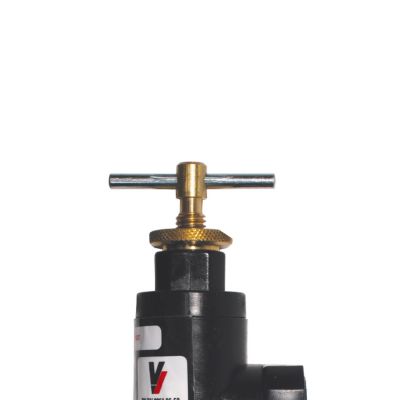

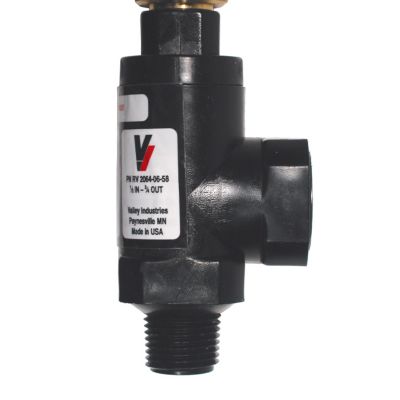

The Hamilton Pressure Regulating Bypass Valve controls the pressure to agricultural sprayers. Designed as a universal replacement, this bypass valve features polypropylene and brass construction for durability. Use the regulating bypass valve with sprayers, pumps and hoses among agricultural fluid applications.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Controls pressure to agricultural sprayers
- Universal replacement pressure regulating valve
- 400 PSI maximum pressure rating; maximum of 15 GPM
- 1/2 in. MNPT inlet; 3/4 in. FNPT outlet
- Imported bypass valve
- Made of polypropylene and brass for durability
- Backed by a 12 month warranty
- Made for use with herbicides, insecticides and pesticides
- Ideal bypass valve for bypassing excess liquid while maintaining control of fluid flow
- For use with water fluid transfers with sprayers, pumps and hoses among agricultural fluid applications
- Positive Viton seals for smooth operation and sealed connections
- T-handle adjustment screw for convenience
- Operating temperature of up to 120 deg. F
| Brand | Hamilton |
|---|---|
| Country of Origin | Imported |
| Compatibility | Master Manufacturing, Master MFG, Valley Industries, Fimco, Countyline, Workhorse, Greenleaf and Hamilton |
| Discharge Connection | Threaded Female |
| Discharge Port Diameter | 0.75 in. |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 1/2 in. |
| Maximum Flow Rate | 15 GPM |
| Maximum Operating Pressure | 250 PSI |
| Maximum Operating Temperature | 120 deg. F |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Polypropylene |
| Product Height | 2.25 in. |
| Product Length | 6.75 in. |
| Product Weight | 0.34 lb. |
| Product Width | 4.5 in. |
| Pump/Repair Product Type | Valves |
| Warranty | 12 Month |
| Manufacturer Part Number | RV2064-06-58-CSK |
