The Evolution 9/16 in. x 2 in. Annular HSS Drill Cutter saves time and energy when compared to other hole-producing methods. Only cutting the periphery of the hole means these annular drill cutters produce a reamed-quality, burr-free hole. No step drilling is required and holes are cut quickly and accurately with this drill cutter.

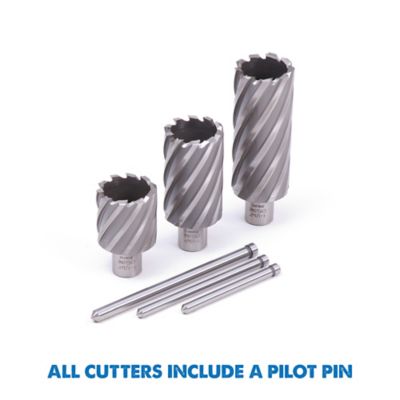

- Pilot pin included with the annular drill cutter
- Cyclone M2AL high-speed steel annular cutter design format
- Produces a reamed-quality, burr-free hole
- No step drilling is required with the drill cutter
- Holes are cut quickly and accurately

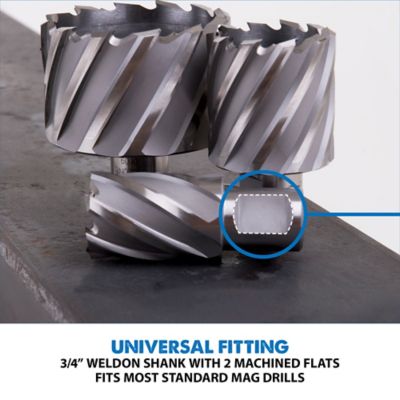

- Measures 9/16 in. W x 2 in. D; 3/4 in. weld-on shank
- Developed as an alternative to the more common M2, M35 and M42 cutters
- Tooth hardness is optimized and heat-treated to 68HRC to maximize cutter performance
- Includes a tapered hardness from the shank through the cutter body and to the cutter teeth
- Makes the cutters more resistant to the torque created while cutting and thus prevent breakage
- Evolution recommends that all annular cutters be cooled properly throughout the cut to ensure cutter life is optimized
- Evolution standard geometry is sufficient for most drilling applications
- Manufactured specifically to maximize hole accuracy while minimizing cutter vibration and extending annular cutter life
- When drilling through multiple layers of material, these style cutters are recommended
- Allows for a single ejection of slugs when drilling through stacked material
| Brand | Evolution |
|---|---|
| Country of Origin | Imported |
| Bit Diameter | 0.75 in. |
| Maximum Drilling Depth | 2 in. |
| Minimum Chuck Size | 1 in. |
| Package Quantity | 2 |
| Primary Material | Steel |
| Product Weight | 7 oz. |
| Shank Diameter | 0.75 in. |
| Manufacturer Part Number | CC562L |
