A: While Concentric International’s Universal Bolt Patterns allow our seats to fit a large variety of applications, due to the numerous amount of equipment model numbers & specific part numbers available by Manufacturer, we do not have a comprehensive list of which seat fits which model number, and all available part numbers for each model. The best way to determine whether any seat will fit a particular application is to: 1. Determine whether the overall dimensions of the seat will fit into the space of the application. 2. Measure bolt pattern of the application, (Width X Depth), and compare to the available mounting holes in the seat, slides, or mounting plate to ensure they will line up with the mounting holes in the application. To ensure an accurate fit, customers may wish to measure the relevant dimensions of their application and evaluate options from there. Dimensional information on our seats can be found at www.concentricintl.com. The bolt patterns for Concentric International’s seats at Tractor Supply stores can also be found on the back of the box.

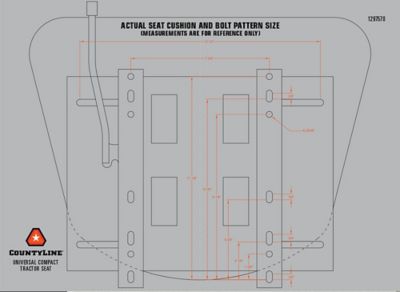

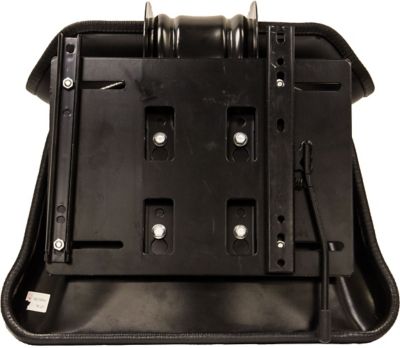

A: The universal seats fit a wide variety of applications. In order to best determine fit on a specific application, you will need to measure the bolt pattern on your machine, (Width X Depth), to see if it matches the available bolt patterns on the 508000BK. The mounting depth (front-to-back) is about 11 inches. The width adjustment range is from about 7-1/2 to 13-1/4 inches.

A: The mounting depth (front-to-back) is about 11 inches. The width adjustment range is from about 7-1/2 to 13-1/4 inches.

A: Sorry – No. The seat only comes as an assembled unit.

A: We have no records specifically indicating that the 508000YE-CNL will fit a JD5325, but it may. Most of our seats are Universal in nature and are designed to fit many different applications. To select a seat for your specific application, three steps are generally employed: 1. Choose a seat of the desired style, and which has the required features. 2. Determine whether the overall dimensions of that seat will fit into the available space of the application. 3. Determine whether that seat features the required mounting bolt pattern of the application.

A: The mounting depth (front-to-back) is about 11 inches. The width adjustment range is from about 7-1/2 to 13-1/4 inches.

A: The universal seats fit a wide variety of applications. In order to best determine fit on a specific application, you will need to measure the bolt pattern on your machine, (Width X Depth), to see if it matches the bolt patterns on the 508000BK.
