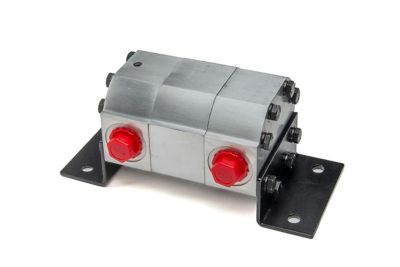

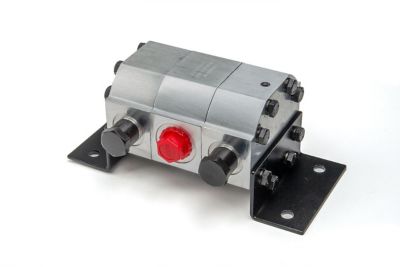

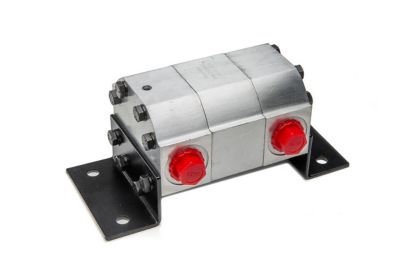

The Chief 3,625 PSI Rotary Flow Divider is made of durable cast iron. The 2-section hydraulic rotary flow divider is designed to synchronize the operation of multiple cylinders or hydraulic motors. It can also provide proportional division of a single pump output to several circuits to intensify flow pressure when higher pressure than pump capacity is required, or you can use the rotary flow divider to combine flows from 2 sources to provide a single greater flow to a hydraulic cylinder or motor.
Specification | Description |
---|---|
Brand | Chief |
Country of Origin | Imported |
Brand Compatibility | Universal |
Maximum Flow Rate | 2.5-5 GPM |
Maximum PSI | 3,625 PSI |
Model Compatibility | Universal |
Outlet Size | SAE 10 |
Primary Material | Cast Iron |
Product Weight | 11 lb. |
Warranty | 1 Year |
Work Port Size | SAE 10 |
Manufacturer Part Number | 253062 |
