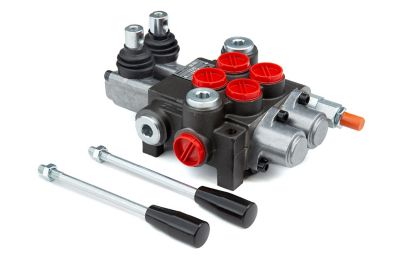

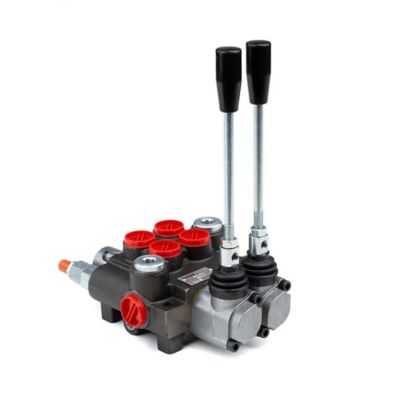

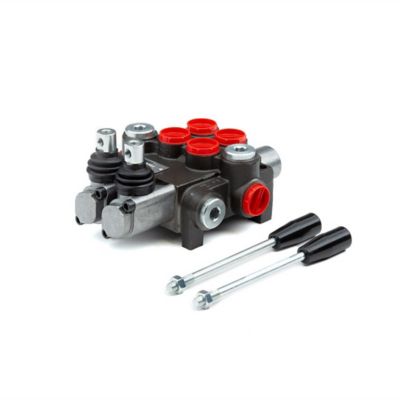

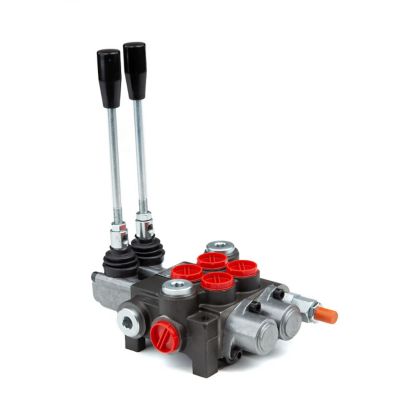

CountyLine 3,625 PSI G Series Directional Control Valve, 10 GPM, 2 Spool, SAE 10 Inlet/Outlet
Exclusive
CountyLine 3,625 PSI G Series Directional Control Valve, 10 GPM, 2 Spool, SAE 10 Inlet/Outlet
Item # 1307341
Stocked & Ready
$319.99
or
or
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Exclusive
CountyLine 3,625 PSI G Series Directional Control Valve, 10 GPM, 2 Spool, SAE 10 Inlet/Outlet
Item # 1307341
Stocked & Ready
$319.99
or
or
$54/mo.† suggested payments with 6 Months Financing or earn $15 in Rewards+ on this purchase.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Use the CountyLine 3,625 PSI G Series Directional Control Valve with a variety of hydraulic tools. Featuring up to 3,625 PSI, this directional control valve comes with a 3-position spring center and a 4-way, 3-position tandem center. The control valve operates in a maximum 176 degrees F temperature, and includes an anti-drop load check on each spool to ensure safety. The control valve is made of durable cast-iron construction, ensuring longevity and added strength.Note: This product may require up to 2 additional days for order processing prior to shipping
- Cast-iron construction provides durability
- Universal compatibility enables easy use
- 10 GPM, SAE 10 inlet, SAE 10 outlet and SAE 10 work ports
- Delivers adjustable relief up to 3,625 PSI
- Control valve has a 10 GPM flow rate
- 4-way, 3-position tandem center
- 3-position spring center
- 176 degree F maximum operating temperature
- Anti-drop load check on each spool allows safe use
- Control valve is equipped with 2 spools
- Power beyond or closed center are available
- Complete handle assembly included
- Backed by a 1-year warranty
| Brand | CountyLine |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | SAE 10 |
| Inlet Type | Female |
| Maximum Flow Rate | 10 GPM |
| Maximum PSI | 3,625 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 3 |
| OEM Replacement | Control valve |
| Outlet Size | SAE 10 |
| Outlet Type | N/A |
| Primary Material | Cast Iron |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 9.4 lb. |
| Product Width | 0 N/A |
| Warranty | 1 Year |
| Work Port Size | SAE 8 |
| Manufacturer Part Number | 310907 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 28 Questions
Newest questions
Q: is this closed center
8 days ago1 Answer
- A: This valve is called a tandem center valve, meaning that in neutral, "A" & "B" ports are blocked, with free flow from "T" to "P". Some people refer to this as an open center, but a true open center, while in neutral, all ports are open to each other.5 days agoHelpful?
Q: Install the Closed-Center Plug (For Closed-Center Only): Remove the standard transition plug from the Power Beyond (PBY) or Tank chamber on the side of your CountyLine valve. Thread the specialized closed-center solid plug firmly into place. Need part.
24 days ago1 Answer
- A: Item your looking for is 22084319 days agoHelpful?
Q: Says closed center is available in product details, what is part number for closed center conversion?
24 days ago1 Answer
- A: Item your looking for is 22084319 days agoHelpful?
Q: I need instruction manual please
a month ago1 Answer
- A: Please check your email for the requested information.a month agoHelpful?
Q: Is there a float position on this valve?
2 months ago1 Answer
- A: This valve does not have a float. Both spools are 4-way, 3-position Tandem Center.2 months agoHelpful?
Q: I need instruction manual. Also can these vales spin so the hoses come out the bottom instead of top mount?
2 months ago1 Answer
- A: The handle could be removed and turned 180 degrees, so the valve could be installed the other way.Please check your email for the requested information.2 months agoHelpful?
Q: How do I get an instruction manual?
2 months ago1 Answer
- A: Please check your email for the requested information.2 months agoHelpful?
Q: How do you change it to a close center valve
4 months ago1 Answer
- A: This valve is a tandem center, so it would not be able to be used on a closed center application4 months agoHelpful?
Q: How can I get an instruction manual or hydraulic diagram for this valve?
5 months ago1 Answer
- A: Please check your email for the requested information.5 months agoHelpful?
Q: What is the part number for the adapter sleeve to convert this to closed center?
8 months ago1 Answer
- A: This valve is a tandem center, so it would not be able to be used on a closed center application8 months agoHelpful?
1 - 10 of 28 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 28 Questions
Newest questions
Q: is this closed center
8 days ago1 Answer
- A: This valve is called a tandem center valve, meaning that in neutral, "A" & "B" ports are blocked, with free flow from "T" to "P". Some people refer to this as an open center, but a true open center, while in neutral, all ports are open to each other.5 days agoHelpful?
Q: Install the Closed-Center Plug (For Closed-Center Only): Remove the standard transition plug from the Power Beyond (PBY) or Tank chamber on the side of your CountyLine valve. Thread the specialized closed-center solid plug firmly into place. Need part.
24 days ago1 Answer
- A: Item your looking for is 22084319 days agoHelpful?
Q: Says closed center is available in product details, what is part number for closed center conversion?
24 days ago1 Answer
- A: Item your looking for is 22084319 days agoHelpful?
Q: I need instruction manual please
a month ago1 Answer
- A: Please check your email for the requested information.a month agoHelpful?
Q: Is there a float position on this valve?
2 months ago1 Answer
- A: This valve does not have a float. Both spools are 4-way, 3-position Tandem Center.2 months agoHelpful?
Q: I need instruction manual. Also can these vales spin so the hoses come out the bottom instead of top mount?
2 months ago1 Answer
- A: The handle could be removed and turned 180 degrees, so the valve could be installed the other way.Please check your email for the requested information.2 months agoHelpful?
Q: How do I get an instruction manual?
2 months ago1 Answer
- A: Please check your email for the requested information.2 months agoHelpful?
Q: How do you change it to a close center valve
4 months ago1 Answer
- A: This valve is a tandem center, so it would not be able to be used on a closed center application4 months agoHelpful?
Q: How can I get an instruction manual or hydraulic diagram for this valve?
5 months ago1 Answer
- A: Please check your email for the requested information.5 months agoHelpful?
Q: What is the part number for the adapter sleeve to convert this to closed center?
8 months ago1 Answer
- A: This valve is a tandem center, so it would not be able to be used on a closed center application8 months agoHelpful?
1 - 10 of 28 Questions
Similar Items
Reviews
Customer Images and Videos
1 to 4 of 22 Reviews .
1 – 4 of 22 Reviews
Most Recent
Colorado
Review 1
5 out of 5 stars.

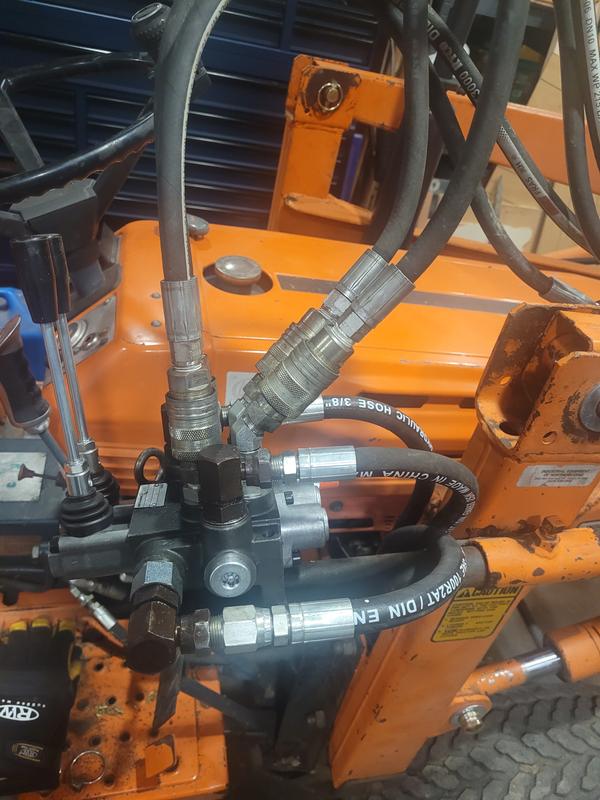

Hydraulic valve
2 years ago
Worked great. Fit right up.
SweepstakesYes
Yes, I recommend this product.
Review 1
1 out of 5 stars.
Deceptive Advertising
2 years ago
Control valve works fine had an issue with Tractor Supply add saying power beyond available but not saying you had to buy extra parts to make it work which they don't sale costing me another $50 from Bailey Sales also supply ports are to close together to use quick connects so had to buy more parts to adapt that Tractor Supply was no help with any of this didn't even call me back
SweepstakesYes
No, I do not recommend this product.
Artesia NM
Reviews 3
5 out of 5 stars.
Good valve
3 years ago
Good parts it is #10 ORB on the fittings
Sweepstakes EntryYes
Yes, I recommend this product.
Mississippi
Reviews 2
5 out of 5 stars.
Five star
3 years ago
Looked up on website even told me what isle it was on in the store.
Sweepstakes EntryYes
Yes, I recommend this product.
