Chicago Die Casting 3 in. OD x 3/4 in. Bore Standard V-Type Belt Pulley with Keyway
Chicago Die Casting 3 in. OD x 3/4 in. Bore Standard V-Type Belt Pulley with Keyway
Item # 3240138
Chicago Die Casting 3 in. OD x 3/4 in. Bore Standard V-Type Belt Pulley with Keyway
Item # 3240138

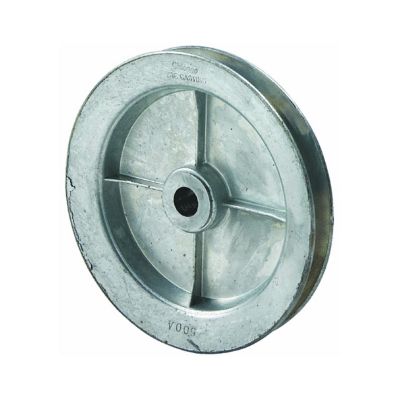

Need a single groove pulley? Get the Chicago Die Casting Standard V-Type Belt Pulley. Featuring zinc die-cast construction, this reliable pulley performs well in a variety of applications. This pulley is compatible with A belts.
- Single groove pulley design
- Pulley is compatible with A belts
- Outside Diameter: 3 in.
- Pitch Diameter: 2.75 in.
- 3/4 in. bore; with keyway
- All pulleys feature zinc die-cast construction for quality that lasts
- All keyways are standard 3/16 in. x 3/32 in.
| Brand | Chicago Die Casting |
|---|---|
| Country of Origin | Made in USA |
| Belt Type | V-Belt |
| Bore Diameter | 3/4 in. |
| Compatibility | A belts |
| Groove Type | V-groove |
| Maximum Belt Width | 0.5 in. |
| Minimum Belt Width | 0.5 in. |
| Number Of Grooves | 1 |
| Primary Material | Zinc |
| Product Diameter | 3 in. |
| Product Height | 3 in. |
| Product Length | 3 in. |
| Product Weight | 9.2 oz. |
| Product Width | 1.22 in. |
| Warranty | 1 |
| Manufacturer Part Number | 300A7 |
