Antennas Direct 4-Output ClearStream JUICE4 Distribution Amplifier
New Arrival
Item # 6163113
Color:
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
New Arrival
Item # 6163113
Color:
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

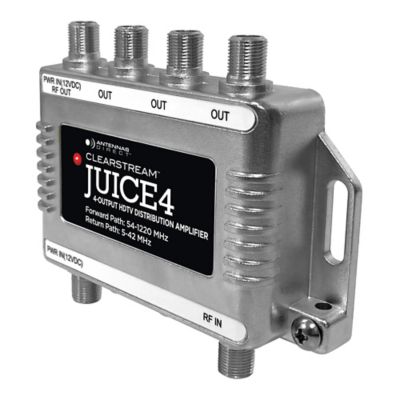

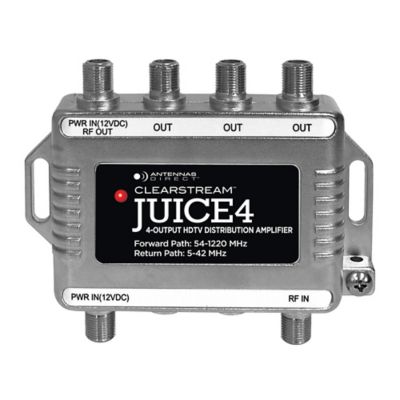

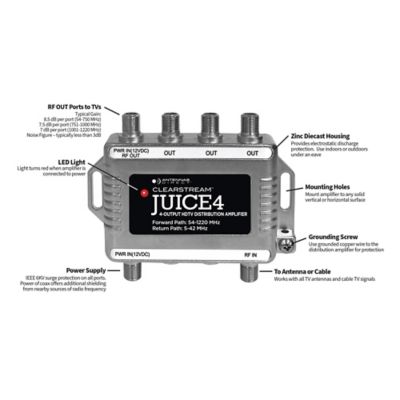

The Antennas Direct® ClearStream® JUICE4 Amplifier boosts the TV signal from your indoor or outdoor TV antenna or CATV system and distributes that signal to as many as 4 TVs. Distributing signal to multiple TVs and using 50 ft. or more of coaxial cable can result in some signal loss. The JUICE4 helps overcome these signal challenges by strengthening the signal coming in from the TV antenna's coaxial cable for consistent reception and picture quality. This 4-output distribution amplifier is designed to be used in homes and professional settings in urban, suburban, and rural areas. Operating frequency extends to 1.2 GHz to accommodate CATV and cable broadband applications. Precision, machine-sealed, zinc die-cast housing protects against dust and water droplets and provides shielding from electrostatic discharge, with excellent surge protection on all ports. It can be used outdoors with 75-ohm F-termination caps, coaxial cables that have watertight F-connectors, and a power inserter (not included) to allow the power adapter to share the coaxial cable connected to the designated output shown on this device.
- 4-output distribution amplifier boosts signal to be split for reception of free broadcast TV on up to 4 TVs or digital converter boxes without impacting quality; supports ATSC 3.0 NEXTGEN TV, and 4K/8K UHD
- Compatible with HDTV, analog, digital TV antenna applications, and legacy CATV
- Operating frequency extends to 1.2 GHz to accommodate CATV and cable broadband applications; frequency range: forward path 54 to 1,220 MHz, return path 5 to 42 MHz
- Each market has TV towers located in different areas; distance to the towers and obstructions like trees and your home's building materials will affect reception; an antenna cannot provide cable TV channels
- Precision, machine-sealed, zinc die-cast housing protects against dust and water droplets and provides shielding from electrostatic discharge; excellent surge protection on all ports
- Low noise figure: less than 3 dB; gain: 8.5 dB per port: 54 to 750 MHz, 7.5 dB per port: 751 to 1,000 MHz, 7 dB per port: 1,001 to 1,220 MHz
- 90-day manufacturer warranty
- Measures 3.5 in. H x 3.8 in. W x 1 in. D; compact size for indoor use, can be used outdoors with termination caps, watertight F-connectors, and weather boots
- Includes 40-in. coaxial cable, power adapter for indoor use, 2 wall screws, grounding screw, and instructions
| Brand | Antennas Direct |
|---|---|
| Country of Origin | Imported |
| Compatible Streaming Apps | None |
| Features | 4-output signal distribution; Supports ATSC 3.0 and 4K/8K; Operating frequency up to 1.2 GHz; Zinc die-cast, weather-resistant housing; Low noise figure under 3 dB; Surge protection on all ports; Compact 3.5 x 3.8 x 1 in. size |
| Interface Type | Other |
| Network Compatibility | Not Applicable |
| Number Of Devices Supported | 1 |
| Power Type | Electric |
| Product Height | 1 in. |
| Product Length | 3.50 in. |
| Product Weight | 0.60 lb. |
| Product Width | 4.40 in. |
| Resolution | 0 N/A |
| Smart Compatibility | None |
| System Memory | 0 N/A |
| Warranty | 90 day |
| Color | Gray |
| Manufacturer Part Number | ANTDJUICE4 |
