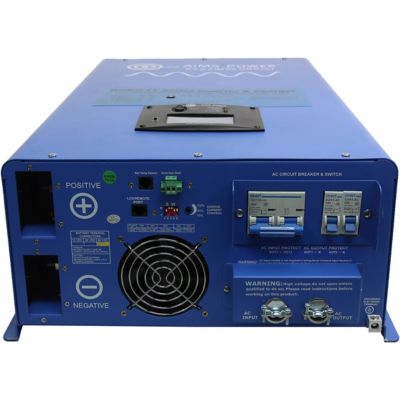

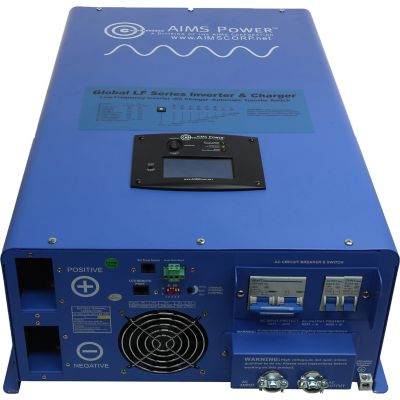

AIMS Power 10,000W Pure Sine Inverter Charger, 48VDC to 120/240VAC

SKU # 131944599
Important information:

  • Price of battery does not include core charge.
  • To avoid additional core charge fee, please return old battery when picking up new battery.
  • Additional core charge fee will apply if old battery is not returned at time of new battery pick up.
Product price

Save Up To
See Price at Check Out
Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options:

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

Built with a 48V DC input, the AIMS Power 10,000W Pure Sine Inverter Charger performs with very little power loss. Users receive a notable increase in efficiency in large systems when compared to using inverters that accept 12 or 24V. This can be an attractive feature for sustainability lovers looking to live as efficiently as possible. The most common use for this inverter is emergency backup power for residences, businesses and large off grid applications. You'll always be prepared for the next power outage with access to 10,000W of continuous power and 30,000W of surge (for up to 20 seconds). The auto-generator start port is also a great feature for emergency backup power, as it will automatically kick on your generator when it senses your battery bank getting low. One of the most sought-after features this inverter has is the direct-connect terminal block, which allows users to surpass the 10,000W capacity and harness its 300% surge power (up to 30,000W for 20 seconds as previously noted). Have a hunting cabin or off-grid vacation home? This AIMS Power inverter is perfect for supplying reliable electricity to the entire house. This inverter is also built to withstand reasonable heat and temperature fluctuations because of its over-temperature protection and dual thermally-controlled fans. And it's protected from humidity or airborne dust and dirt by virtue of its marine-coated (or "conformal-coated") boards. This inverter provides the reliability needed in any business or residential emergency backup power applications. This inverter is split-phase and will output 120 or 220/230/240Vac, and it can output 50 or 60 Hz via the SW4 dipswitch on the DC side of the product. This means that this inverter works internationally and is operable with nearly any electrical system on the planet.

  • 30,000W surge for 20 seconds - 3x surge capability
  • Battery priority selector
  • AC direct connect terminal block
  • Marine coated and protected
  • Multi stage smart charger 85 Amp
  • Remote panel available
  • Auto gen start
  • Auto frequency
  • 10msec typical transfer time
  • Optional 25W power save mode
  • 7 battery type settings for charger

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Peak Output: 30000 watts
Overheat Protection: Yes
Low Battery Shutdown: Yes
Product Length: 23-5/16 in.
USB Port: No
Product Width: 16-5/16 in.
Warranty: 2 Year
Product Height: 7-7/8 in.
Brand: AIMS Power
Product Type: Power Inverters
Continuous Output: 10000 watts
Product Weight: 146 lb.
Manufacturer Part Number PICOGLF10KW48V240VS
