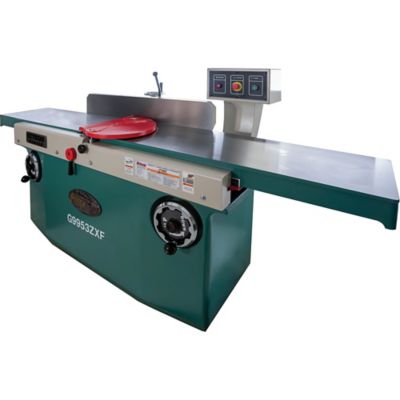

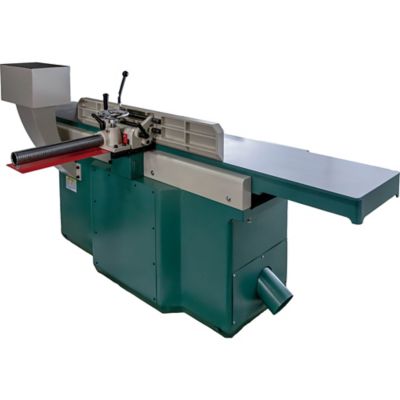

Tipping the scales at 1650 pounds, the G9953ZXF features cast-iron throughout including the base, hardened and precision-ground tables, center-mounted fence and table elevation handwheels. The spiral cutterhead is equipped with 120 indexable carbide inserts that can be rotated to reveal any one of their four cutting edges. Simply rotate each 90° to reveal a fresh cutting edge. This provides up to 16" wide cut for the finest finish available and a much quieter machine that's unlike any other. An added safety feature is the cutterhead brake. It turns the machine off and brings the cutterhead to a rapid stop when the handle is rotated. The G9953ZXF has fence stops that can be set at 90° or 45°. If you require a different angle, the fence can be locked in place anywhere between these angles.
Specification | Description |
---|---|
Brand | Grizzly |
Country of Origin | Imported |
Amperage | 20 A |
Cut Through | Wood |
Dust Collection Method | 4 in. dust port |
Features | No additional features |
Horsepower | 5 hp |
Housing Material | Cast iron |
Maximum Board Thickness | 5 in. |
Maximum Cut Depth | 0.3125 in. |
Maximum Cuts Per Minute | 30000 CPM |
Maximum Cut Width | 16 in. |
Maximum Speed | 3450 RPM |
Minimum Board Thickness | 0.5 in. |
Minimum Cut Depth | 0.5 in. |
Minimum Speed | 3450 RPM |
Number Of Blades | 120 |
Number of Speeds | 1 |
Product Type | Jointer |
Portable or Stationary | Stationary |
Product Height | 32 in. |
Product Length | 45.5 in. |
Product Weight | 1650 lb. |
Product Width | 99.25 in. |
Table Length | 99.25 in. |
Table Width | 16.25 in. |
Tool Power Type | Corded |
Variable Speed | Single Speed |
Voltage | 220 V |
Warranty | 1 |
Manufacturer Part Number | G9953ZXF |
