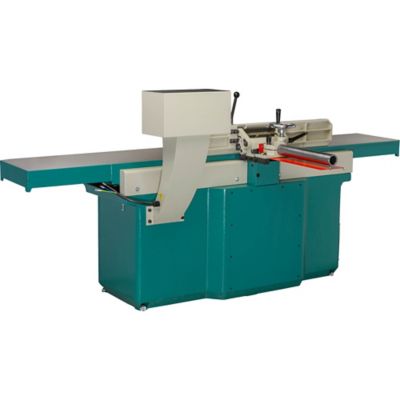

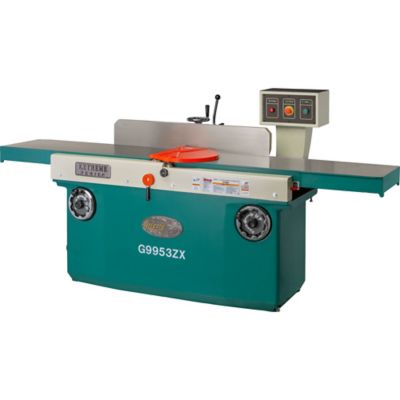

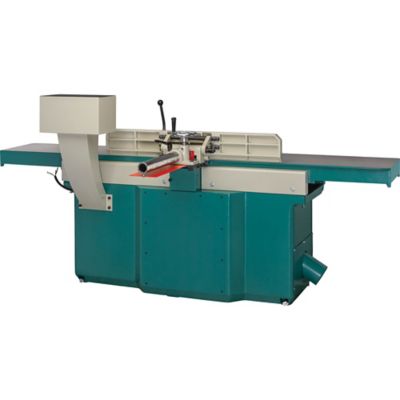

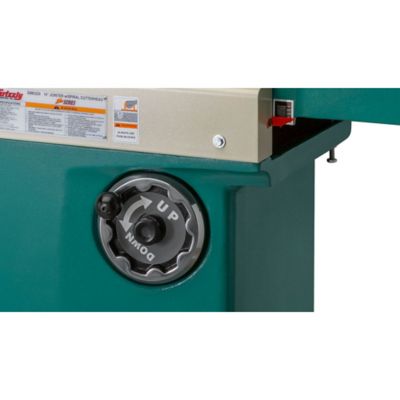

Tipping the scales at 1650 pounds, the G9953ZXF features cast-iron throughout including the base, hardened and precision-ground tables, center-mounted fence and table elevation handwheels. The spiral cutterhead is equipped with 120 indexable carbide inserts that can be rotated to reveal any one of their four cutting edges. Simply rotate each 90° to reveal a fresh cutting edge. This provides up to 16" wide cut for the finest finish available and a much quieter machine that's unlike any other. An added safety feature is the cutterhead brake. It turns the machine off and brings the cutterhead to a rapid stop when the handle is rotated. The G9953ZXF has fence stops that can be set at 90° or 45°. If you require a different angle, the fence can be locked in place anywhere between these angles.

• Motor: 5 HP, 220V/440V* (prewired 220V), 3-phase, 14A/7A
• Maximum width of cut: 16"
• Maximum depth of cut: 5/16"
• Cutterhead diameter: 4"
• Cutterhead type: 6-row spiral with 120 inserts
• Insert size and type: 14 x 14 x 2mm, indexable carbide
• Cutterhead speed: 5000 RPM
• Table size: 99-1/4 "x 16-1/4"
• Fence size: 43-1/4" L x 6-5/8" H
• Minimum stock length: 18"

The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine. The Customer Service and Technical Support Teams are also U.S.-based. Parts for this machine may be available online and shipped from the parts warehouse in Springfield, MO.
