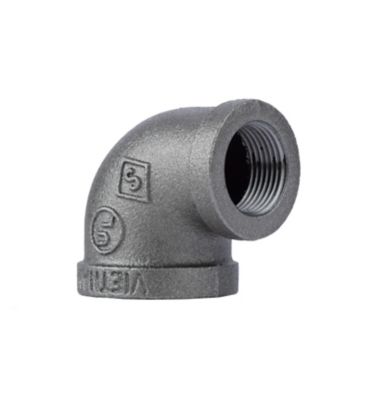

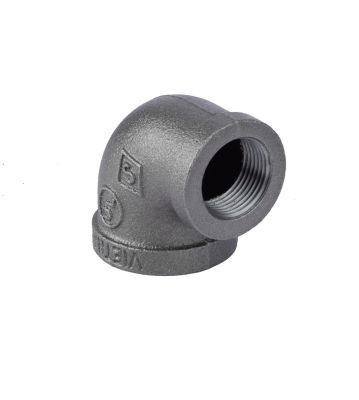

STZ Industries 1 in. x 3/4 in. Black Reducing Elbow
$7.99
When selecting gas pipe for your home STZ pipe and fittings are the way to go! Our durable black iron fittings are 100% pressure tested and protected right at the factory and come in an array of sizes for residential gas air and LP applications. Meets ANSI/ASME standards.
- Class 150 malleable iron
- Threaded ends meet with ANSI/ASME B1.20.1 standards
- Rated at maximum 300 psi at 150 degrees F or 150 psi at 300 degrees F
- Pressure tested at the factory
- UL & FM rated
- Certified ASME B16.3 and ASTM A197
- Not for use with drinking water
| Brand | STZ Industries |
|---|---|
| Country of Origin | Imported |
| Compatible Pipe Material | Black malleable iron |
| Connector 1 Size | 1 in. |
| Connector 1 Type | FIP |
| Connector 2 Size | 34 in. |
| Connector 2 Type | FIP |
| Features | Threaded |
| Maximum Operating Pressure | 300 PSI |
| Maximum Operating Temperature | 300 deg. |
| Minimum Operating Temperature | -29 deg. |
| Package Quantity | 1 |
| Pipe Elbow Angle | 90 deg. |
| Primary Color | Black |
| Primary Material | Iron |
| Product Length | 2.25 in. |
| Product Weight | 0.6 lb. |
| Recommended Function | Gas supply |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 501493 |
