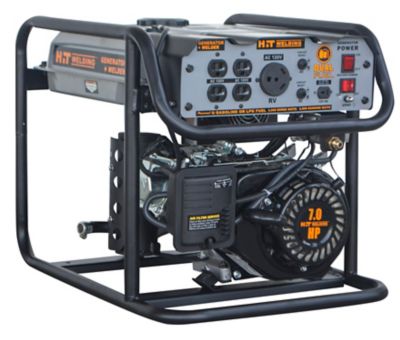

Sportsman 4,000/3,500 W Dual-Fuel Generator/Welder
Sportsman 4,000/3,500 W Dual-Fuel Generator/Welder
Item # 1420586
Add a protection plan
Powersport plans are not available in CA.
Add a protection plan
Powersport plans are not available in CA.
The Sportsman 4000/3500-Watt Dual-Fuel Generator/Welder has everything you need for the job in one package. Able to handle the needs of most contractors, this dual-fuel generator/welder is also great for homeowners and recreational activities. Equipped with four 120 Volt outlets and a whole lot more, this dual-fuel generator/welder can handle almost everything you need at the job site. Try Sportsman's versatile dual-fuel generator/welder today!
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Great dual-fuel generator/welder for a variety of applications
- 4,000 surge watts and 3,500 running watts can run the RV, household appliances, and power tools
- Dual-fuel generator/welder utilizes either unleaded gasoline or LPG propane gas a s a fuel source (propane tank not included)
- 7.0 HP engine, 4 stroke, 212cc, air cooled, recoil start, OHV 4 stroke engine with AVR, recoil start, single phase
- Dual-fuel generator/welder offers: 9 hour run time with a 50 percent load on an full 3.2 gal. gas tank, or 12 hours with a full 20 lb. propane tank
- (4) 120V AC outlets (each 20 amps), (1) 120V RV outlet (30 amps), (1) 12V DC outlet (8 amps) for battery charging, circuit protection
- AC/DC circuit reset, engine shut off switch, welding power switch, low oil shutdown; oil capacity: 18.5 oz. SAE 10W30,
- Dual-fuel generator/welder puts out less than 69 dB noise with no load at 23 ft.
- Comes with a DC connector wires for charging 12 Volt automotive-type batteries, a spark plug wrench, and a 5 ft. regulator hose kit
- Surge watts / running watts may be reduced by 10% when using propane fuel vs. gasoline
- EPA approved, Non-CARB compliant/Not for sale in California
- High altitude use: this generator is not recommended for high altitude use above 3,000 ft.
- Inverter power manages input fluctuations for better welds and more control
- Comes TIG ready for scratch start, over/low voltage protection, anti-sticking, and hot start
- Welds mild steel, stainless steel, cast iron, and hard surfacing
- Powered by the generator, 120V input, 60Hz, 25.75 amps, single phase
- 76V DC no load voltage, duty cycle 25% at 85A, 10 to 85 AMP DC output range
- Uses 1/16, 5/64, and 3/32 inch (1.6-2.5mm) electrodes, E6013, E7014, E7018, and stainless steel suggested
- Dual-fuel generator/welder equipped with 6 ft. welding cable with electrode holder, 6 ft. ground cable with earth clamp, face mask, and wire brush
| Brand | Sportsman |
|---|---|
| Country of Origin | Imported |
| Description | Dual Fuel 4000 Surge Watt Generator Plus Stick Welder/TIG ready |
| Engine Brand | Sportsman |
| Engine Displacement | 212cc |
| Features | Duel Fuel 3500 Running Watts/ 4000 Surge Watts with |
| Fuel Tank Capacity | 3.2 gal. |
| Fuel Technology | Dual-Fuel |
| Accessories Included | None |
| Generator Amperage | 30A |
| Generator Running Watts | 3500W |
| Generator Starting Watts | 4000W |
| Generator Voltage | 120V, 12V |
| Number of Circuits | 2 |
| Number Of Outlets | 6 |
| Operational Volume (dB) | 69 dB |
| Outlet Types | 120V/30A |
| Packaged Height | 21 in. |
| Packaged Length | 25.5 in. |
| Packaged Weight | 102 lb. |
| Packaged Width | 21.25 in. |
| Power Type | Gas, Propane |
| Primary Color | Gray |
| Product Height | 25 in. |
| Product Length | 19 in. |
| Product Weight | 19.5 in. |
| Product Width | 112 lb. |
| Recommended Application | Campsite, Job Site, Recreational, Tailgating |
| Run Time at Full Load | 4 hours on Gasoline , 6 hours on Liquid Propane |
| Run Time at Half Load | 9 hours on Gasoline , 12 hours on Liquid Propane |
| Start Type | Recoil |
| Manufacturer Part Number | GEN4000DF-STW |
