Piusi USA 1/8 HP 120V Electric EX50 UL Fuel Pump Pro Kit, 15 GPM, Auto/Meter
Piusi USA 1/8 HP 120V Electric EX50 UL Fuel Pump Pro Kit, 15 GPM, Auto/Meter
Item # 138736299
$929.99
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
Piusi USA 1/8 HP 120V Electric EX50 UL Fuel Pump Pro Kit, 15 GPM, Auto/Meter
Item # 138736299
$929.99
or
or
$78/mo.† suggested payments with 12 Months Financing or earn $46 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.

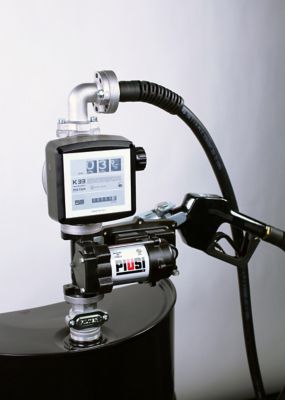

The EX50 120VAC 15GPM UL PRO Fuel Transfer Pump Kit is designed for dispensing gasoline, diesel and kerosene. Utilizing a grooved rotor and spring-loaded vanes, it is able to deliver higher flow rates at the nozzle; even with all of the common accessories (longer hose, filter, meter, auto nozzle). A true 15GPM at the nozzle! This fuel transfer pump kit includes a 15GPM 12V fuel transfer pump, auto-nozzle, mechanical meter, delivery hose, downtube, and tank connector.
- 30% more compact with 30% more flow rate
- High efficiency electric fuel transfer pump delivers up to 15GPM at the nozzle
- Anti-kink premium hose prevents the hose from kinking
- Flanged components allow the fuel transfer pump unit to be installed or replaced without the use of sealant, making connections quick and easy
- Bypass valve and spring-loaded, reinforced vanes are built-in to ensure efficiency and longevity
- 120V/60Hz
- Amperage: 1.7A
- Automatic shut-off nozzle
- K33 mechanical meter
- 13 ft. dispense hose
- Duty Cycle: 30 minutes on/ 30 minutes off
- UL/cUL-listed fuel transfer pump motor suitable for Class 1, Group D area
- Thermal overload protection to prevent overheating
- Bung mount with integrated filter strainer keeps the pump free from debris
| Brand | Piusi USA |
|---|---|
| Country of Origin | Imported |
| AC or DC Powered | AC |
| Amperage | 1.7A |
| Body Materials | Cast iron |
| Compatible Fluids | Kerosene |
| Discharge Connection | Threaded Male |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. on30 min. off |
| Features | Spring-loaded vanes, grooved-rotor, true 15GPM flow rate, thermal switch protection |
| Horsepower | 0.125 HP |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Commercial |
| Maximum Flow Rate | 15 GPM |
| Maximum Head Lift | 1 in. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 110 deg. F |
| Minimum Operating Pressure | 1 PSI |
| Minimum Operating Temperature | 10 deg. F |
| Power Type | Electric |
| Product Height | 11 ft. |
| Product Length | 24 ft. |
| Product Weight | 30 lb. |
| Product Width | 16 ft. |
| Voltage | 120/60V |
| Warranty | 2 year |
| Manufacturer Part Number | F0037650D |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: How long is the suction tube going into the tank? I need 45" length on the 4' storage tank.
4 years ago1 Answer
- A: The suction tube going into the tank is the standard 37 inches.4 years agoHelpful?
Q: Is the product 120 volt AC or 12 volt DC?
4 years ago1 Answer
- A: Voltage: 120/604 years agoHelpful?
Q: 1)The product description says 120V, yet the product specs specify DC. Which is it??? 2) where is the product made?
5 years ago1 Answer
- A: Italy5 years agoHelpful?
Q: Who Manufactures pump and how much hose attached
5 years ago1 Answer
- A: The hose length is 12 feet. The manufacturer is Piusi USA Inc.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 4 of 4 Questions
Newest questions
Q: How long is the suction tube going into the tank? I need 45" length on the 4' storage tank.
4 years ago1 Answer
- A: The suction tube going into the tank is the standard 37 inches.4 years agoHelpful?
Q: Is the product 120 volt AC or 12 volt DC?
4 years ago1 Answer
- A: Voltage: 120/604 years agoHelpful?
Q: 1)The product description says 120V, yet the product specs specify DC. Which is it??? 2) where is the product made?
5 years ago1 Answer
- A: Italy5 years agoHelpful?
Q: Who Manufactures pump and how much hose attached
5 years ago1 Answer
- A: The hose length is 12 feet. The manufacturer is Piusi USA Inc.5 years agoHelpful?
