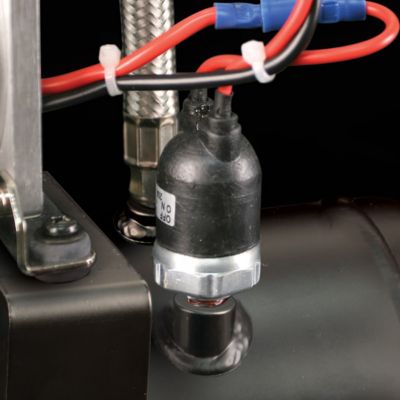

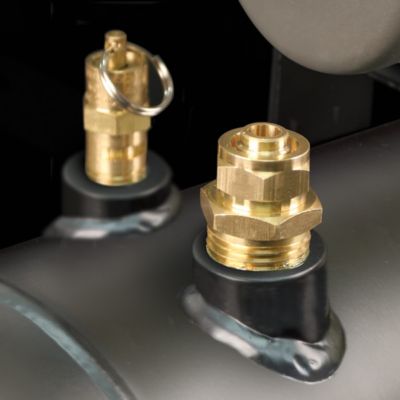

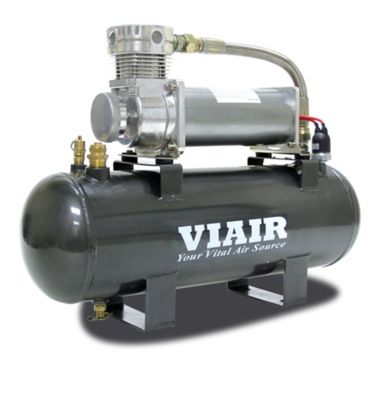

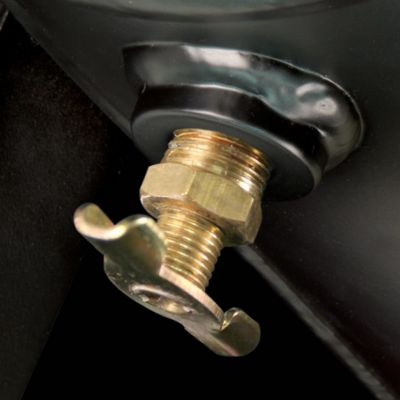

The Viair 200 PSI 2.0 gal. High-Flow-200 Air Source Kit comes with a powerful, low amp-draw 480C VIAIR compressor mounted on a 200 PSI-rated 2.0 gal. air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry's leading 200 PSI compressors but also come with a drain cock, safety valve, 1/2 in. port compression fitting for 3/8 (I.D.) air line pre-installed! To use the 200 PSI Air Source kit, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this Air Source kit.
Specification | Description |
---|---|
Brand | VIAIR |
Country of Origin | Imported |
Air Delivery SCFM At 90 PSI | 1.13 CFM |
Airflow Volume | 1.86 CFM |
Air Outlet Size | 1/2 in. NPT |
Amperage | 23A |
Compressor Horsepower | 0.25 HP |
Compressor Maximum PSI | 200 PSI |
Compressor Tank Capacity | 2 gal |
Compressor Type | Horizontal |
Compressor Voltage | 12V |
Cord Length | 1 ft. |
Drain System | Manual |
Drive Type | DC |
Features | None |
Number Of Power Speeds | Single |
Power Type | 12 Volt |
Primary Color | No Color |
Primary Material | Steel |
Product Height | 13.9 in. |
Product Length | 19.7 in. |
Product Weight | 22.95 lb. |
Product Width | 5.9 in. |
Pump Material | Metal |
Tank Fill Time | 3 min. 56 sec. |
Tank Orientation | Horizontal |
Warranty | 1 Year |
Manufacturer Part Number | 20008 |
