This Powermatic 20 in. Planer with Straight Knives offers performance and value, loaded with standard features not found on other woodworking machines in its class. The powerful wood planer with a 5-HP motor and 20-in. planing capacity will handle the most demanding work. The 5-in. dust port connects easily to any dust collector. The cutterhead has four high-speed steel knives and turns at 5,000 RPM, producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast-iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine-groove outfeed rollers ensure a smooth feed. The precision-ground and polished cast-iron table rides on four steel columns, giving this wood planer plenty of support for the larger work piece. Heavy cast-iron extension wings ensure a flat, smooth cut.

• Cutterhead contains 4 high-speed steel straight knives for a clean, smooth cut

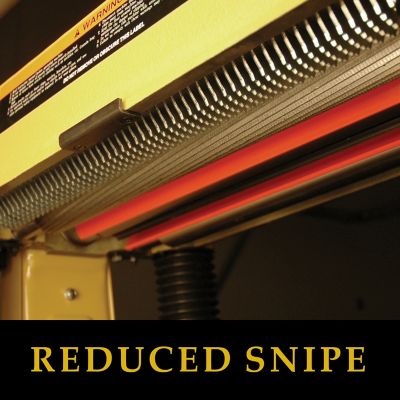

• Chip breaker and pressure bar assists to reduce snipe

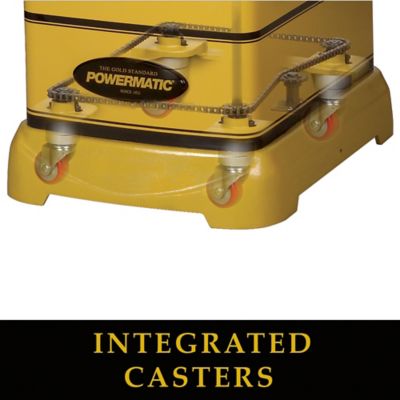

• Fully enclosed base cabinet with integrated casters makes it easy to move this planer machine around the shop
• Chrome-plated, ergonomic handwheel makes adjustments smooth and easy
• Cast-iron table with extensions creates a big 55-1/2 in. x 20 in. working area

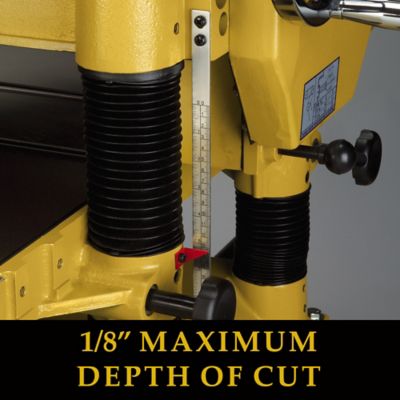

• Serrated steel infeed roller and smooth steel outfeed roller allow for 1/8 in. maximum depth of cut and trouble-free operation
• Feed rollers and cutterhead on this Powermatic planer are supported by a full cast-iron head assembly for rigidity
