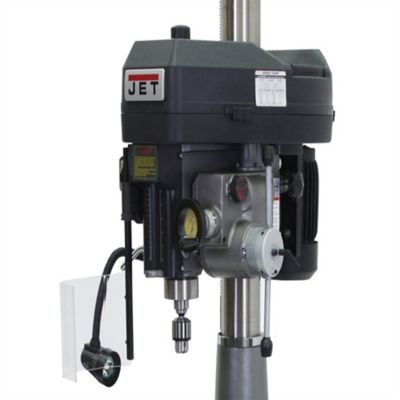

The JET JMD-18PFN milling/drilling machine has a one-piece cast iron column for support and features large hand wheel knobs, a large worktable, and a highly versatile 360-degree head swivel. Innovative base-taper allows for easier cleanup, and the belt cover has a quick slide latch that allows for faster belt adjustment to change spindle speeds. The heavy-duty tapered roller bearings support the spindle resulting in greater tolerance and more accurate drilling depth. The JMD-18PFN also features a forward and reverse switch. Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD milling/drilling machine possess the advantages of space-saving versatility, affordability, and light machining capability.

• Drilling capacity 1-1/4 inch Face mill capacity 3 inches, End mill capacity 3/4-inch Swing 15-7/8 inches Maximum distance, spindle to table 26 inches, Spindle taper R-8, Spindle travel, manual 5 inches, Spindle travel, auto 4-1/4 inches, Quill diameter 3 inches, Column diameter 4-1/2 inches, Number of spindle speeds 12, 150 to 3,000 RPM, Table travel, maximum 20-1/2 inches, Cross travel 6-1/2 inches, Table working surface 9-1/2 x 32-1/4 inches, T-slots 4, 5/8-inch,T-slot centers 1-13/16 inches, Base dimensions 15-3/4 x 23-3/4 inches, Motor 2 HP, 1 phase, 230-volt, Overall dimensions 47 x 40 x 51 inches. Weight 600 pounds
