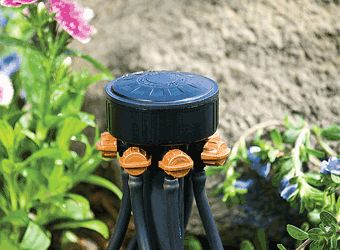

The DIG 6-Outlet Adjustable Drip Irrigation Head with 1/2 in. FNPT is used to retrofit an existing 1/2 in. sprinkler riser into a 6-outlet drip irrigation system without altering or increasing the total flow of the sprinkler system zone. The drip manifold has 6 independently adjustable, pressure compensating outlets with flow rates between 0 and 20 GPH at operating pressures of up to 50 PSI. The manifolds 6 rotating 1/4 in. barbed outlets have flow control knobs which offer installation flexibility when the unit is incorporated into a new system or when replacing any of the sprinkler heads in a zone. Each outlet accepts 1/4 in. micro tubing, 1/4 in. soaker hose or the addition of drip emitters and adjustable stakes to bring water to each plant root zone at a maximum flow of 20 GPH per outlet.

• Equipped with 1/2 in. FNPT
• 20 GPH per outlet
• Replacing the sprinkler riser with the 6-outlet manifold can lead to water savings of 50% to 70%
• Each outlet has a swivel barb with flow control knob that allows flow adjustment and installation flexibility
• Allows incorporation of 1/4 in. dripline, 1/4 in. soaker hose or the use of drip emitters to a maximum flow of 20 GPH per outlet
• Replacing a sprinkler head with drip irrigation can eliminate wet walls and discoloration and staining of fences and windows
• Designed for new and existing landscapes, including oddly shaped areas where a sprinkler head cannot provide good coverage
• No special tools or glue are needed to install this 6-outlet adjustable manifold
• Note: DIGs drip irrigation products may be exempt from residential and commercial watering restrictions (check local codes)
• Install the drip manifold above grade, or place below grade in a 6 in. emitter box
• Use this drip irrigation head with any brands 1/4 in. micro tubing
• Operating pressure: 15-50 PSI
• Temperature range: up to 122 degrees F (50 degrees C)
• Filter requirement: min. of 40 mesh
• Constructed with a high-impact plastic body
