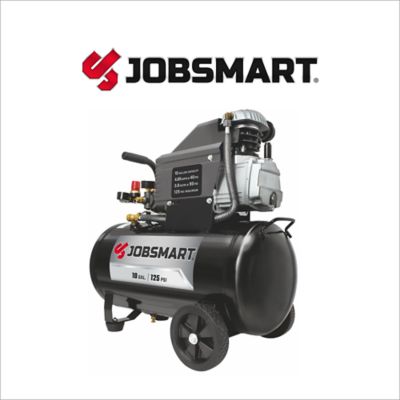

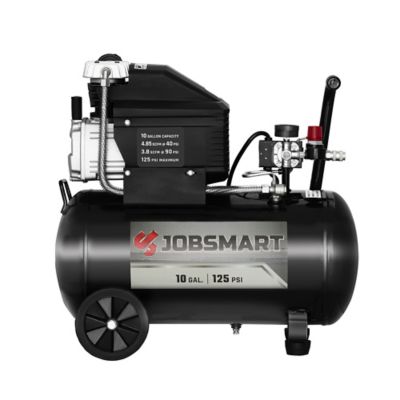

JobSmart 2 HP 10 gal. Single-Stage Horizontal Portable Air Compressor
Item # 1027299
Item # 1027299
Pump high-pressure air into tires, gas cylinders, supply divers and pneumatic tools easily with the JobSmart 2 HP 10 gal. Single-Stage Horizontal Portable Air Compressor. This heavy-duty 10 gal. air tank has two 6 in. wheels making it portable and easy to move around. There are 2 pressure gauges to reference, with a max pressure rating of 125 PSI. It's also oil lubricated for long-lasting use and equipped with thermal overload protected for safety. Two one-hand push-connect hose couplers are also included. This portable air compressor measures 26.77 in. L x 12.8 in. W x 25.39 in. H.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Capacity: 10 gal.
- Oil lubricated
- 2.0 HP motor
- 4.85S CFM @ 40PSI, 3.8S CFM @ 90 PSI
- Max pressure 125 PSI
- Oil lubricated pump
- ETL rated
- Steel tank, Aluminum pump construction
- Two Pressure gauges
- Two 6 in. wheels
| Brand | JobSmart |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 3.8 CFM |
| Air Outlet Size | NPT 1-4 |
| Amperage | 14.5A |
| Compressor Horsepower | 2 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 135 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 10 gal |
| Compressor Voltage | 120V |
| Drain System | Drain valve |
| Drive Type | Direct drive |
| Engine Brand | Giant Electric |
| Features | Oil lubricated for long life |
| Fuel Tank Capacity | 250 mL |
| Maximum RPM | 3,300 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 2 |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Other |
| Product Height | 25.39 in. |
| Product Length | 26.77 in. |
| Product Weight | 69.89 lb. |
| Product Width | 12.8 in. |
| Pump Life | 1,000 hours |
| Pump Material | Aluminum |
| Pump Oil Capacity | 250ml |
| Stage Type | Single-Stage |
| Tank Fill Time | 147 sec. |
| Tank Style | Horizontal |
| Warranty | 1 Year |
| Manufacturer Part Number | JL611204 |
