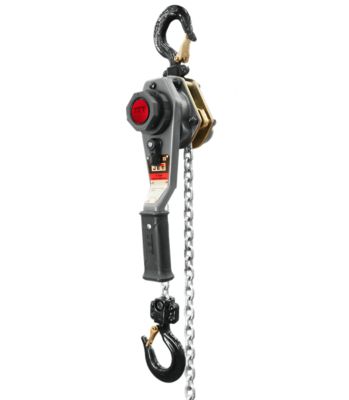

JET 1-Ton 10 ft. Lift JLH Series Lever Hoist with Overload Protection
Item # 189369899
Neighbor’s Club Members earn points with purchases.
Neighbor’s Club Members earn points with purchases.
The JET JLH Series 1-Ton Lever Hoist with 10 ft. Lift and Overload Protection incorporates safety, durability and heavy-duty construction for operation in severe industrial environments. Safety comes standard with features, such as slip clutch style overload protection, which prevents the lever hoist from lifting or pulling damaging loads beyond its rated capacity. Our lightweight design, shorter handle and smaller body are ideal for confined areas and low headroom applications. With industrial-rated alloy steel hooks, they're designed to rotate 360 deg. for simple rigging. The hoist also comes with caged needle bearings, which help to support the load sheave, promoting smooth operation and increasing efficiency.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- All steel construction for durability
- Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
- Enhanced ergonomic grip allows for greater operator control and increased comfort
- Grade 100, corrosive-resistant plated load chain is a smaller, more compact link that is 20% stronger than grade 80 load chain
- Heat treated load plates for long-lasting
- Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
- Weston-style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Available in 1/4 ton to 9 ton capacities with standard lifts of 5, 10, 15 and 20 feet (custom lifts available)
- Backed by a lifetime replacement warranty
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Chain Length | 0 in. |
| Chain Pull To Lift Rated Load | 0 in. |
| Chain Width | 0 in. |
| Features | Plated load chain |
| Hoist Mount Type | Hook mount |
| Lift Assist Ratio | 3 |
| Lift Height | 10 ft. |
| Lift Mechanism | Hand crank |
| Maximum Pull Length | 10 ft. |
| Maximum Weight Capacity | 2,200 lb. |
| Power Type | Manual |
| Primary Material | Steel |
| Product Height | 4.69 in. |
| Product Length | 14.96 in. |
| Product Weight | 15.3 lb. |
| Product Width | 5.67 in. |
| Warranty | Lifetime |
| Manufacturer Part Number | 376201 |
