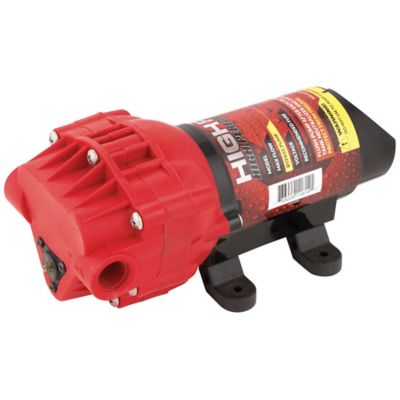

Fimco 12V High-Flo High-Performance Bypass Pump, 2.4 GPM
Fimco 12V High-Flo High-Performance Bypass Pump, 2.4 GPM
Item # 1350425
Add a protection plan
Powersport plans are not available in CA.
Add a protection plan
Powersport plans are not available in CA.
The Fimco 2.4 GPM 12V High-Flo High-Performance Bypass Pump sets the standard for electric pumps. The quick-connect convenience paired with premium parts makes this innovative sprayer replacement pump a great choice for your spot spraying or broadcast spraying needs. With 60 PSI maximum pressure, this Fimco bypass pump delivers increased flow rates and a longer lifespan.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 2.4 GPM electric sprayer bypass pump for spot spraying or broadcast spraying needs
- 12VDC power sprayer pump is equipped with a ball-bearing drive
- Bypass pump will run continuously without damage once pressure is reached or unless shut off
- In-line fuse protection - 8A max draw
- 3/8-in. FNPT inlet and outlet ports
- Self priming up to 14 ft.
- Runs dry without damage
- Fimco bypass pump is 100% factory tested for quality assurance
- Maximum pressure of 60 PSI
- Chemically resistant elastomers provide increased flow rate delivering superior performance
- Replaces pump part numbers 5281373, 5275814, 5277995 and 5275651
- Internally fan-cooled motor delivers consistent performance under heavy load
- Backed by a 2-year (consumer) and 90-day (commercial use) warranty
- Max operating temperature: 130 degrees F
| Brand | Fimco |
|---|---|
| Country of Origin | Imported |
| Compatibility | Fimco, TSC Sprayers |
| Inlet Connection | Threaded Female |
| Maximum Flow Rate | 2.4 GPM |
| Maximum Operating Pressure | 60 PSI |
| Maximum Operating Temperature | 130 degrees F |
| OEM Replacement | 5281373, 5275814, 5277995 and 5275651 |
| Package Quantity | 1 |
| Primary Color | Red |
| Primary Material | Steel |
| Product Height | 3-1/4 in. |
| Product Length | 7-3/4 in. |
| Product Weight | 2 lb. 15.2 oz. |
| Product Width | 4 in. |
| Pump/Repair Product Type | Pumps |
| Warranty | 2 Year Consumer, 90 Day Commercial |
| Manufacturer Part Number | 5151089 |
