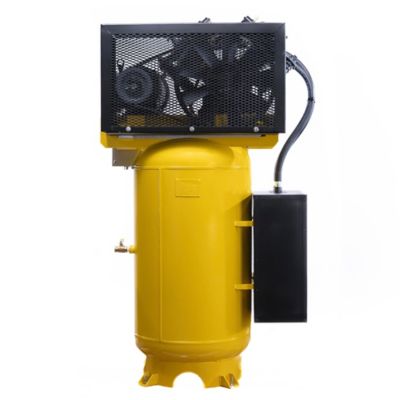

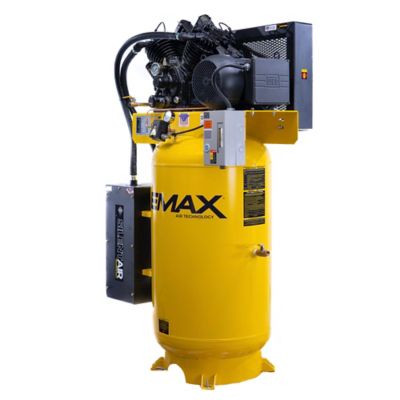

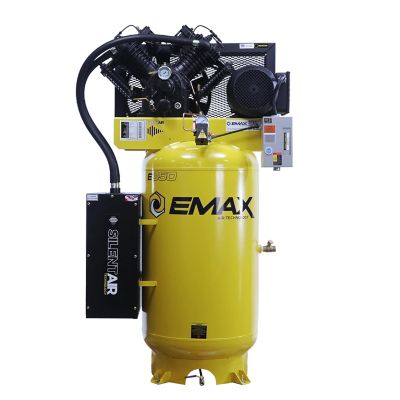

EMAX 10 hp 80 gal. 2 Stage Industrial V4 Pressure Lubricated Pump Silent Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI

Shop all EMAX
EMAX 10 hp 80 gal. 2 Stage Industrial V4 Pressure Lubricated Pump Silent Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI

Item # 1496191

EMAX EMAX 10 hp 80 gal. 2 Stage Industrial V4 Pressure Lubricated Pump Silent Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI
EMAX EMAX 10 hp 80 gal. 2 Stage Industrial V4 Pressure Lubricated Pump Silent Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI
$5599.99
Add a protection plan
Powersport plans are not available in CA.
EMAX 10 hp 80 gal. 2 Stage Industrial V4 Pressure Lubricated Pump Silent Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI

Item # 1496191

EMAX EMAX 10 hp 80 gal. 2 Stage Industrial V4 Pressure Lubricated Pump Silent Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI
EMAX EMAX 10 hp 80 gal. 2 Stage Industrial V4 Pressure Lubricated Pump Silent Air Compressor, 175 PSI, 1-Phase, 38 CFM at 100 PSI
$5599.99
Add a protection plan
Powersport plans are not available in CA.

Exclusive 10 HP Performance on Single-Phase Power Get true 10 HP performance with 38 CFM of air delivery while running on single-phase power. This exclusive combination makes the EMAX 10 HP 80 Gallon Industrial Air Compressor an ideal solution for professional shops, commercial operations, and industrial applications where three-phase power isn't available. Built for demanding commercial and industrial applications, the EMAX 10 HP 80 Gallon Industrial Air Compressor combines powerful performance, quiet operation, and long-term durability. This single-phase, 2-stage, pressure-lubricated vertical piston compressor is engineered for up to 70,000 hours of service life with proper maintenance. Delivering 38 CFM at 100 PSI with a 175 PSI maximum operating pressure, this compressor is designed to handle a wide range of professional applications. The EMAX Silent Air System is engineered to significantly reduce compressor intake noise without sacrificing performance. Intake air is routed through a series of internal baffle plates, helping dissipate noise before it enters the compressor. The low-profile Silent Air System also provides four levels of air filtration, while reducing sound levels by up to 50% compared with conventional compressor intake systems. Powerful performance without the excessive noise.1 Year Standard, 5 Year EXTENDED warranty, Eligible for Pump lifetime warranty with maintenance kit

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.

  • MADE IN USA
  • Patented 2-stage, pressure-lubricated reciprocating pump
  • Silent Air Technology helps this air compressor run quietly w/5 Stage Filtration
  • All steel connecting rods with replaceable rod bearing inserts can be rebuilt
  • Easy Spin-on oil filter
  • Oil pressure gauge & level site glass
  • 10HP 38 CFM SINGLE Phase Power!!
  • All cast iron cylinder heads are more durable and dependable
  • Disc valve design intake and exhaust valves come right out of the top of the cylinder head where they can be serviced in minutes
  • Top quality compression and oil rings ensure performance with low oil carry over (1-5 PPM)
  • Precision ground pistons machined to tight tolerances ensures low oil carry over
  • Premium non-absorbent gaskets prevent oil seepage from pump
  • All cast iron flywheel with built-in fan gives the pump more throw on the compression stroke which will result in fewer loads on the electric motor
  • Built-in head unloaders
  • Inter-cooler allows air to be cooled between stages while the air cooled. After-cooler provides a second cooling stage that cools the air before it goes into the tank
  • Large 1-3/8 in. output shaft
  • ETL, ASME, Certified
  • 12 Month Parts + Labor, 5YR Parts Extended, 5YR Parts + Lifetime Pump Extended Options
  • Maximum Pump RPM: 800, for extended life
  • Running Amperage: 40
  • Manual ball-valve tank drain
  • 40 CFM @ 90 PSI & 42 CFM @ 40 PSI
  • Industrial Motor: 1750 RPM
  • Maximum PSI: 175
  • Single Phase 230 volt
  • Air Outlet size: 3/4 in.
  • Powder-coated ASME-certified tank rated to 200 PSI
  • Weight: 810 lb.
  • Magnetic starter
  • Pump Oil Capacity: 2.5 qt.
  • Dimensions: 38 x 42 x 72 in. (LxWxH)
