Weekly AdWhat's NewTractor Supply AppEarn Rewards with Neighbor's ClubHometown HeroesLife Out Here BlogTSC Exclusive BrandsTop BrandsClearance ItemsBattery FinderOutdoor Power Equipment Parts FinderHitch FinderEMAX 10 hp 120 gal. 2-Stage Industrial V4 Pressure Lubricated Pump Plus Silent Air Compressor, 175 PSI, 1-Phase
Item # 149620099
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 149620099
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

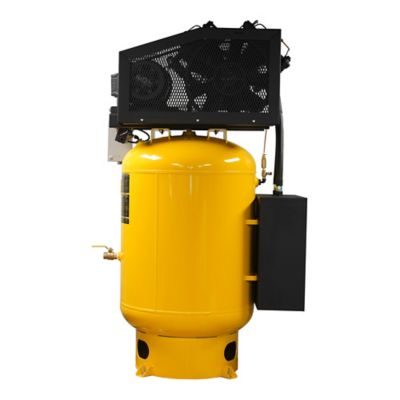

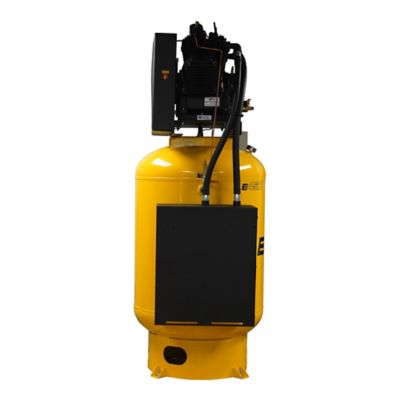

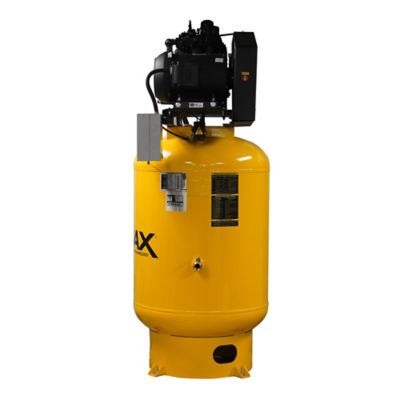

Get true 10 HP performance and 38 CFM of air delivery while running on single-phase power. This exclusive combination makes the EMAX 10 HP 120 Gallon Industrial Air Compressor an ideal choice for professional shops, commercial operations, and industrial applications where three-phase power is not available. The EMAX 10 HP 120-Gallon 2-Stage Industrial V4 Silent Air Compressor features a heavy-duty, cast-iron, pressure-lubricated V4 pump engineered for demanding applications and rated for up to 70,000 hours of service life with proper maintenance. The advanced dual-control design allows the compressor to operate in either automatic or continuous-run mode, providing flexibility for a wide range of applications. The compressor is equipped with high-quality pressure switches featuring an adjustable pressure screw, allowing users to fine-tune the pressure setting higher or lower to match their specific application requirements. The EMAX Silent Air System helps reduce compressor intake noise while maintaining excellent airflow. Combined with multiple levels of air filtration, the Silent Air System delivers quieter operation and cleaner intake air making this industrial compressor powerful enough to work hard and quiet enough to work around.1 Year Standard Warranty, 5 Year Extended, Extended Lifetime Eligible Pump Warranty with Maintenance kit
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- MADE IN USA
- Patented pressure lubricated 2-stage cast iron pump with dual control design allows for automatic or continuous run rated at up to 70,000 hours based on B-10 bearing life rating
- Continuous mode functionality on the silent compressor is for workloads over 50% duty cycle eliminates wear and tear on your magnetic contactor
- Belt tension adjustor for fast, easy one-turn design reduces vibration and extends belt life

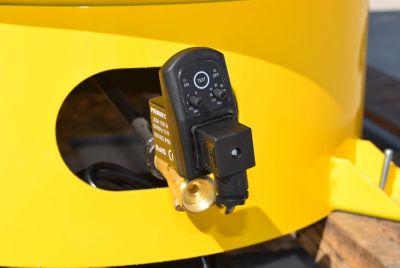

- Auto tank drain 110-volt dual is timer controlled and eliminates daily maintenance
- Silent air technology dissipates compressor intake noise by channeling the intake air through a series of baffle plates
- 10HP SINGLE phase power!!
- Single phase compressor delivers 38 SCFM at 100 PSI with a top PSI of 175
- Powder-coated ASME tank in the compressor is weather resistant
- 200 PSI rating
- Low-profile design adds 4 levels of air filtration
- Includes: Auto tank drain, patented SILENT air technology
- Tank outlet size: 1"
- Pump RPM: 800
- Industrial duty 10 HP electric motor, 1750 RPM, Running Amp: 40A
- 38 CFM @ 100 PSI, Max PSI: 175
- Patented Silent Air technology
- Certifications: ASME, ETL
- Solid Cast Iron Crankcase with oil sight glass NOT Aluminum, Steel Crankshaft with Tapered Roller Bearings for Solid Pump Support
- 12 Month Parts + Labor, 5YR Parts Extended, 5YR Parts + Lifetime Pump Extended Options
| Brand | EMAX |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 38 CFM |
| Air Outlet Size | 1 in. |
| Amperage | 40 running Amps |
| Compressor Horsepower | 10 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Dual control |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 230V |
| Connection Type | NPT |
| Drain System | Electric Autodrain |
| Drive Type | Electric Motor |
| Engine Brand | N/A |
| Features | Single Phase power |
| Maximum RPM | 800 RPM |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Yellow |
| Primary Material | Steel |
| Product Height | 78 in. |
| Product Length | 41 in. |
| Product Weight | 1020 lb. |
| Product Width | 43 in. |
| Pump Life | 70,000 hours |
| Pump Material | Cast iron |
| Pump Oil Capacity | 2 qt. |
| Stage Type | Two-Stage |
| Tank Fill Time | 4.5 minutes |
| Tank Style | Vertical |
| Warranty | 12 Month Parts + Labor, 5YR Parts Extended, 5YR Parts + Lifetime Pump Extended Options |
| Manufacturer Part Number | ESP10V120V1 |
