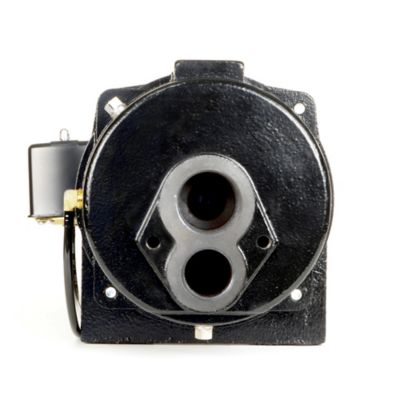

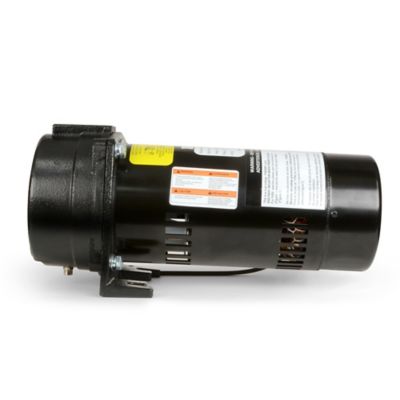

The ECO-FLO Products Inc. Convertible Deep Well Jet Pump can be used in either shallow or deep well installations in 4 in. wells. The well pump replacement helps provide superior performance and high capacities with more pressure for deep water wells at 20 ft. Ideal for shallow well applications with pumping levels to 25 ft., and for deep well applications with pumping levels to 90 ft. The pump has a dual voltage design of 115/230V.
Specification | Description |
---|---|
Brand | ECO-FLO Products Inc. |
Country of Origin | Imported |
Amperage | 11.5,5.8 Amp |
Body Material | Cast iron |
Compatible Pipe Material | Poly, PVC |
Compatible Well Diameter | 4 in. |
Discharge Connection | Threaded Female |
Discharge Diameter | 1 in. |
Discharge Rate at 0 ft. | 10.1 GPM |
Discharge Rate at 25 ft. | 7 GPM |
Discharge Rate at 50 ft. | 4 GPM |
Features | Convertible jet pump can be used in either shallow or deep well installation in 4 in. wells. Cast Iron construction. 30/50 pressure switch. Motor features stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seal. |
Horsepower | 0.75 Hp |
Impeller Material | Plastic |
Inlet Connection | Threaded Female |
Inlet Diameter | 1.25 in. |
Maximum Flow Rate | 10 GPM |
Maximum Head Lift | 100 ft. |
Maximum Operating Depth | 100 ft. |
Maximum Operating Temperature | 104 deg. F |
Minimum Operating Temperature | 32 deg. F |
Power Cord Length | 0 ft. |
Power Type | Electric |
Product Height | 8 in. |
Product Length | 21 in. |
Product Weight | 39 lb. |
Product Width | 11 in. |
Motor Type | PSC |
Voltage | 115V/230V |
Warranty | 2 Year |
Manufacturer Part Number | EFCWJ7 |
