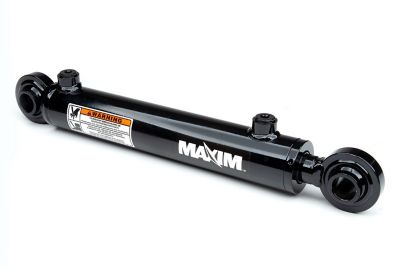

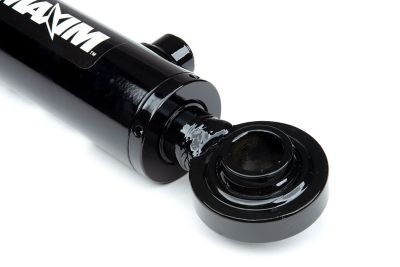

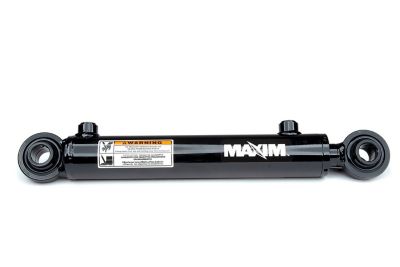

Maxim 2 in. Bore x 12 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Online Only
Item # 1307809
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 1307809
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Maxim 2 in. Bore x 12 in. Stroke WSB Swivel Ball Welded Cylinder features pin holes at both its base and rod end. This swivel ball hydraulic cylinder is a versatile cylinder that is designed for use in all double-acting applications. Hard work is never fun, that's why this hydraulic cylinder has been made with exacting precision to help make your work easier and faster!
- Welded hydraulic cylinder is intended to be used in double-acting applications
- Piston: ductile iron
- Piston lock nut: nylock nut
- Gland: ductile iron with rod wear band
- Tube: steel tube honed or skived for extended seal life
- Tube seal: O-ring and backup
- Rod: ground and polished hard chrome-plated rod
- Rod seal: U-cup
- Wiper: polyurethane
- End mounts: spherical
- All seals are manufactured to US specifications
- Ports: O-ring boss
- Pin diameter of 1 in. and rod diameter of 1.25 in.
- Max PSI: 3,000
- Measures 19.5 in. retracted and 31.5 in. extended
- 1 year warranty included with the hydraulic cylinder
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 36 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 19 lb. |
| Product Width | 0 N/A |
| Retracted Length | 19.5 in. |
| Rod Diameter | 1.25 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 12 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 400514 |
Q: Rod diameter can't be 2 3/4 with a 2 inch bore. This one has a 1.25 inch rod I believe.
4 years ago- A: 2 in. Bore x 12 in. Stroke, 1.25 in. Rod Dia.4 years agoHelpful?
Q: Is there a dimensional drawing for this cylinder?
4 years ago- A: You will need to contact the manufacture for a drawing of the cylinder.4 years agoHelpful?
