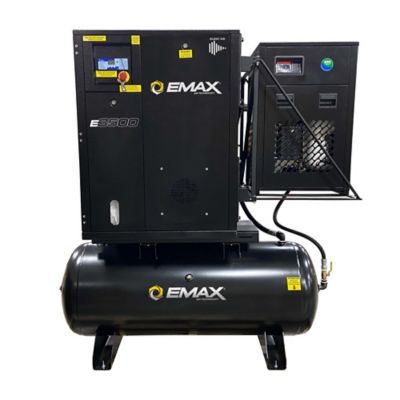

EMAX 15HP 3PH 57CFM100PSI 230V 120 Gallon Tank with Air Dryer Rotary Screw Compressor, ERIK150003
Online Only
Item # 2343361
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 2343361
This item is available online only
Out of stock delivering to
37027
This item will be sent to the store for Pickup and will require a Big & Bulky handling fee.Learn more
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.
EMAX Compressors 15HP 3PH 208/230V new generation Industrial Rotary Screw series have been built to exacting standards, to provide years of reliable service with a 60,000-pump life expectancy. Our Industrial series rotary line offers superior performance, a slick design and quite operation. The sound proof cabinet helps reduce operational noise to a minimum. Our Industrial Rotary Screw Air Compressors are built with premium standard features, offering the Logik 9 smart controller giving you the visual ability to set pressures, alarms and schedules. The controller has multi-unit control giving you the ability to run multiple Rotary's with a master/slave relationship. These units are equipped with V-belt drive, 1750RPM premium motor, MANN Filters for superior filtration, 8000HR oil and all back by the best warranty program! This unit is mounted to a receiving tank with a patented swingarm mounted air dryer for small foot print and easy maintenance. 1 Year Standard, Extended 5 Year with maintenance kitAuto Tank Drain, Industrial low rpm Motor, Wye/Delta start, Belt drive, Logik 9 controller, RotorComp German Screw Pump, Auto start/stop
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Pump life: 60,000 hours
- RotorComp rotary screw pump: Made in Germany
- Cabinet: Made in Italy
- 57 CFM @ 100 PSI, 48 CFM @ 145 PSI Maximum
- Dimensions: 82" x 45" x 80" (LxWxH)
- Weight: 1126
- Poppet inlet valve
- Outlet connection: 1" NPT
- Industrial USA electric Motor with Slow 1750 RPM
- Automatic start/stop operation
- Included Dryer: 115CFM 115Volt refrigerated Dryer with 134A environmentally friendly refrigerant, Auto drain, Coalescing filter,
- Dryer Continued: Swingarm Hinge Easy Access, Dew Point: 37-50, 1-1/2" dryer pipe size, 140 Max rated inlet temperature, 122 Max Ambient Temperature
- Dryer Continued: Weight- 180 lbs, Dims: 26" x 23" x 36" (LxWxH)
- Tank: 120 Gallon horizontal ASME certified in all 50 states, Max 200 PSI
| Brand | EMAX |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 48 CFM |
| Air Outlet Size | 1 in. |
| Amperage | 43.1 FLA AMP |
| Compressor Horsepower | 15 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 145 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 230V/460V |
| Connection Type | NPT |
| Drain System | Automatic Tank Drain |
| Drive Type | Belt |
| Features | Auto Tank Drain, Industrial USA Motor, Wye/Delta start, Belt drive, Logik 9 controller, RotorComp German Screw Pump, Auto start/stop |
| Phase | Triple |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 104 in. |
| Product Length | 106 in. |
| Product Weight | 45 in. |
| Product Width | 48 in. |
| Pump Life | 60,000 hr. |
| Pump Material | Steel |
| Stage Type | N/A |
| Tank Fill Time | 5 min. |
| Tank Style | Horizontal |
| Warranty | 1 Year Standard, Extended 5 Year with maintenance kit |
| Manufacturer Part Number | ERIK015003 |
