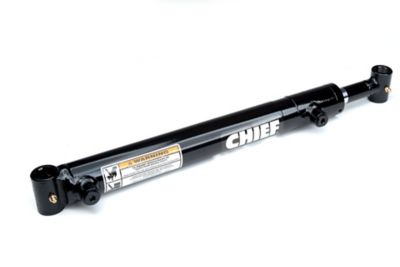

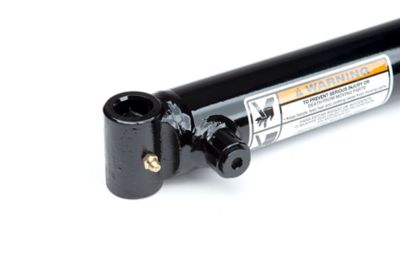

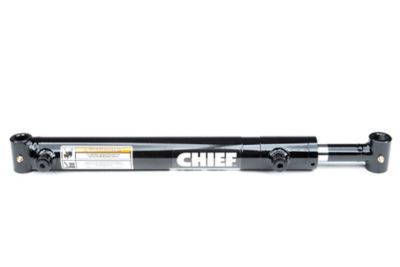

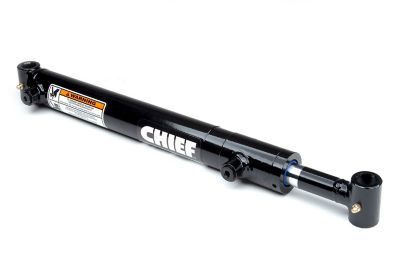

The Chief 2.5 in. Bore x 19.5 in. Stroke LD Loader Welded Cylinder is a small bore welded hydraulic cylinder designed for light-duty loaders. The rod and base ends are welded cross-tubes with grease zerk, giving the hydraulic cylinder a durable and easy to use design. The cylinder's ductile iron piston utilizes a wear ring to protect the seal from wear, increasing the lifespan of the product tremendously.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Welded cylinder is ideal for construction, agricultural and other applications
  • Intended use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: honed steel
  • Rod: hard chrome-plated
  • End mounts: cross-tubes
  • Tube seal: Buna O-ring with polytemp hytrel back-up
  • Rod seal: polyurethane U-cup
  • Rod wiper: polyurethane, snap-in
  • Piston seal: 755 with wear rings, (2 each) wear bearings
  • All seals are manufactured to US specifications
  • Ports: SAE O-rings
  • Pin diameter of 1.25 in. and rod diameter of 1.5 in.
  • Packaging: individually poly bagged
  • 3 year warranty included on the hydraulic cylinder
  • Measures 27.75 in. retracted and 46.75 in. extended
  • Column load: 6,690 lb.
